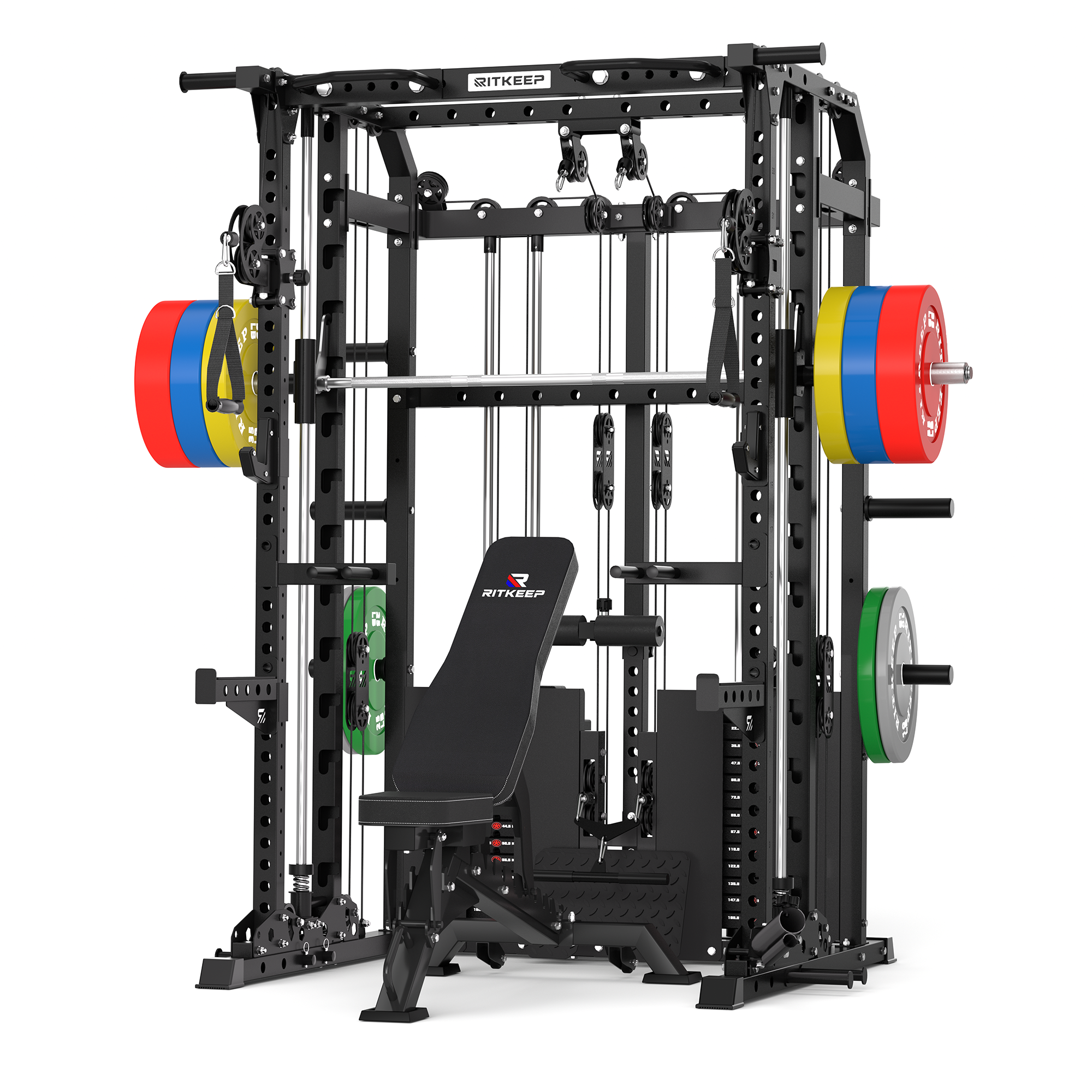

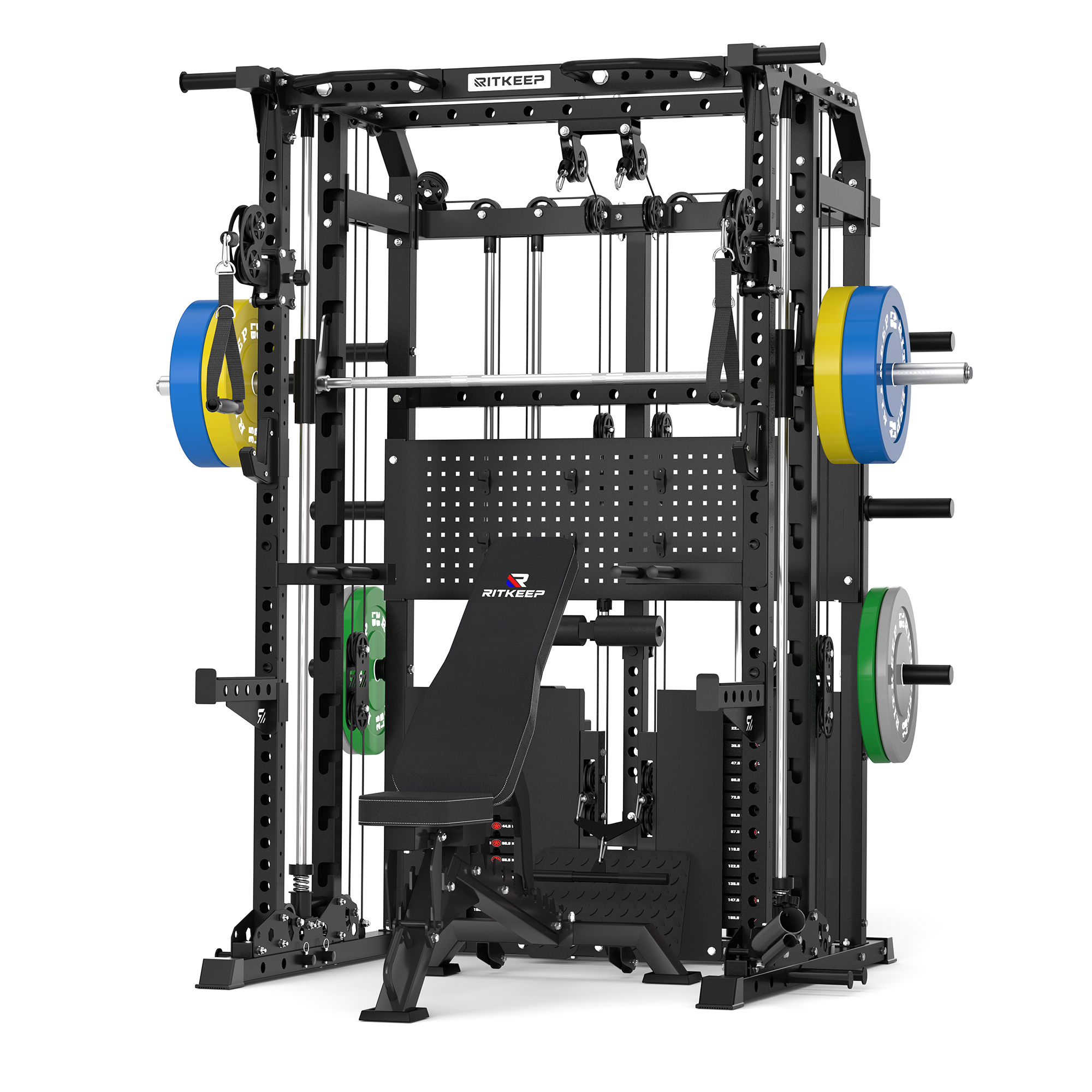

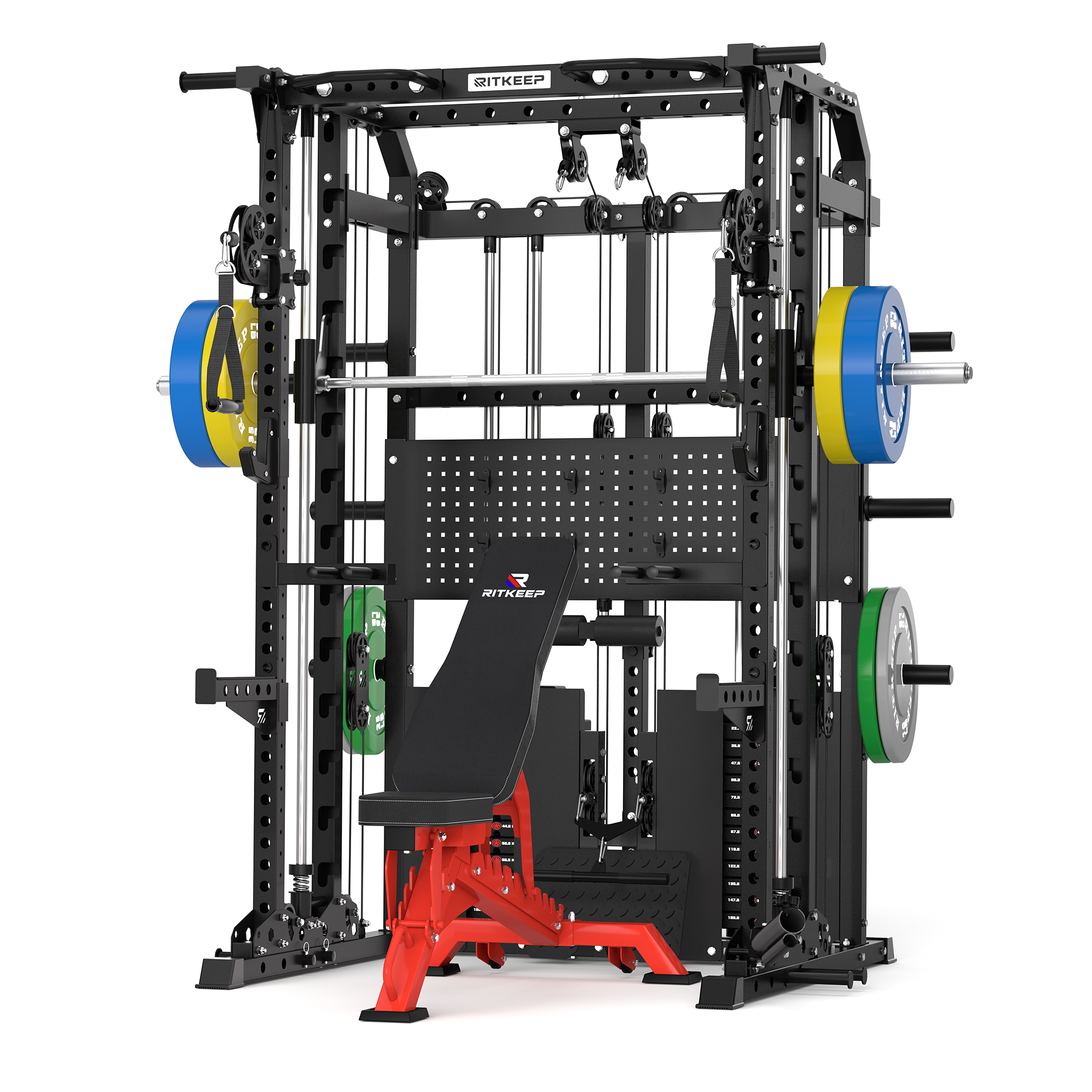

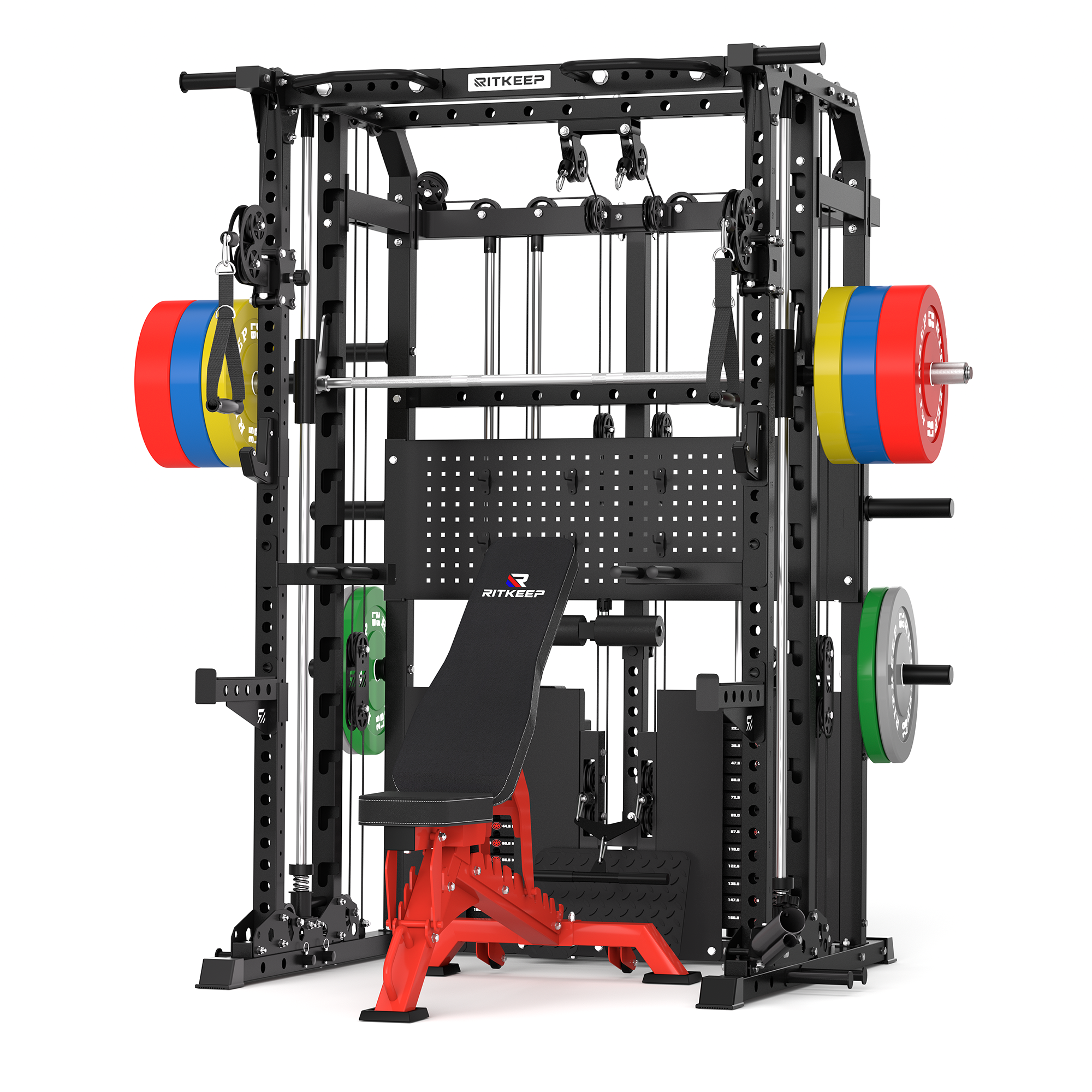

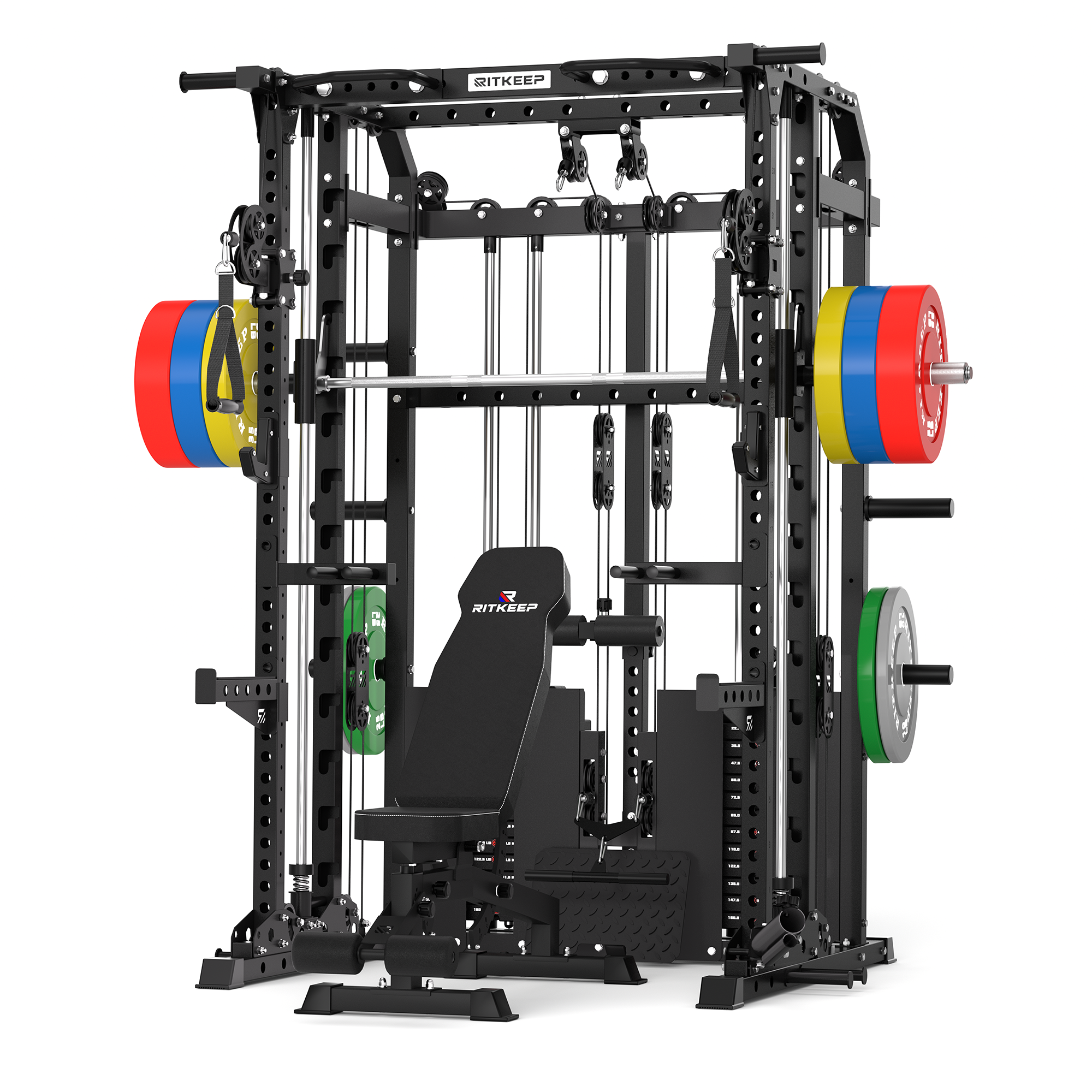

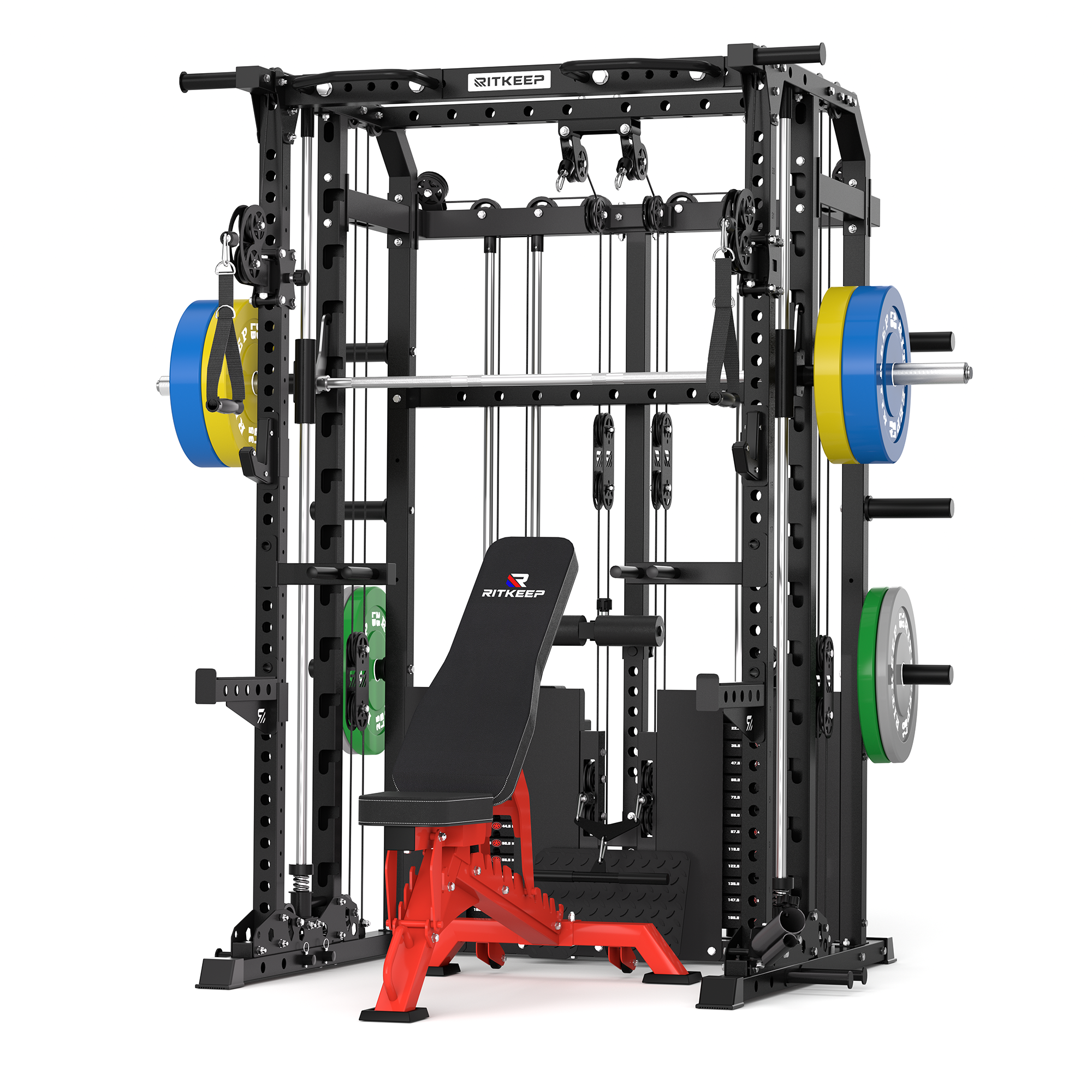

DESCRIPTION

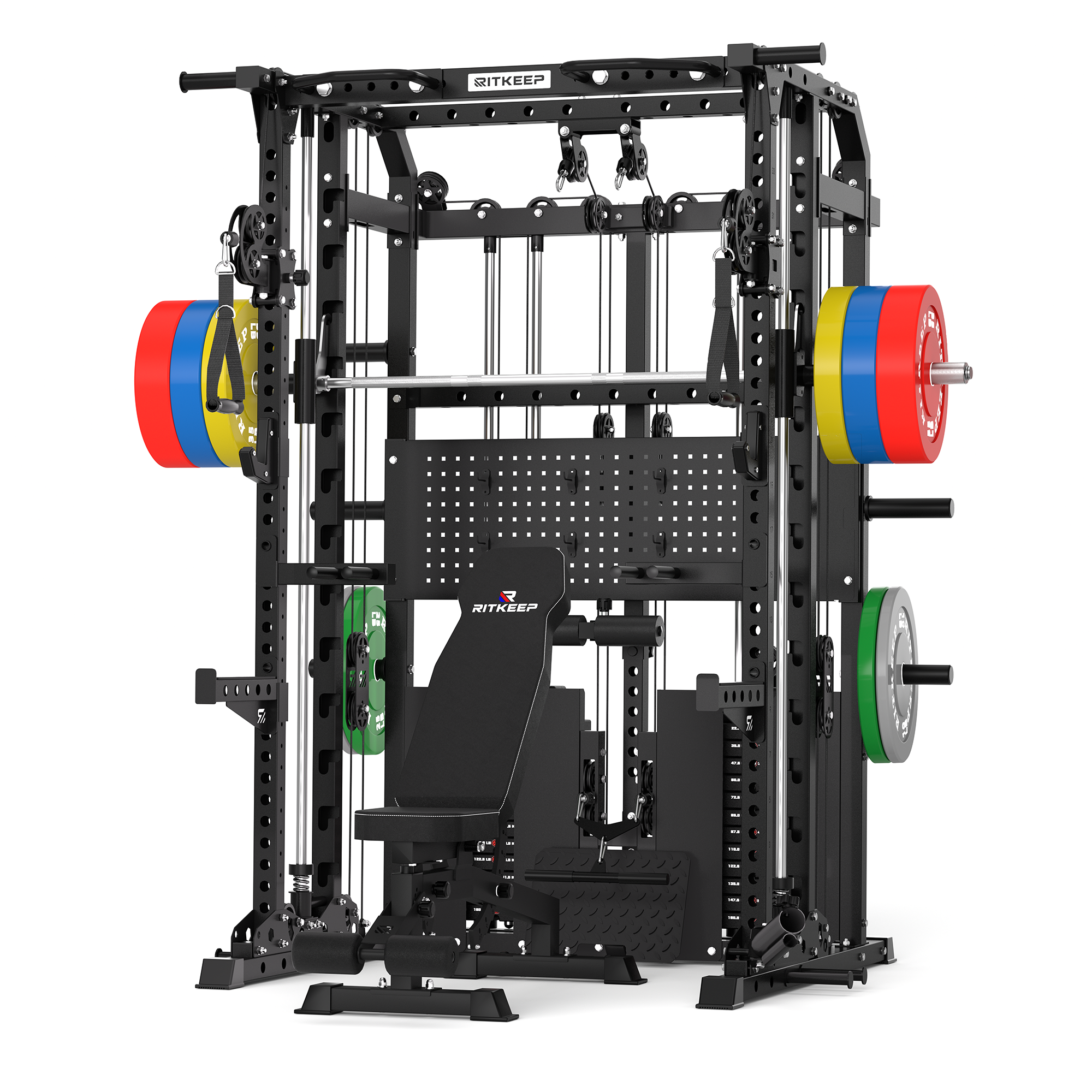

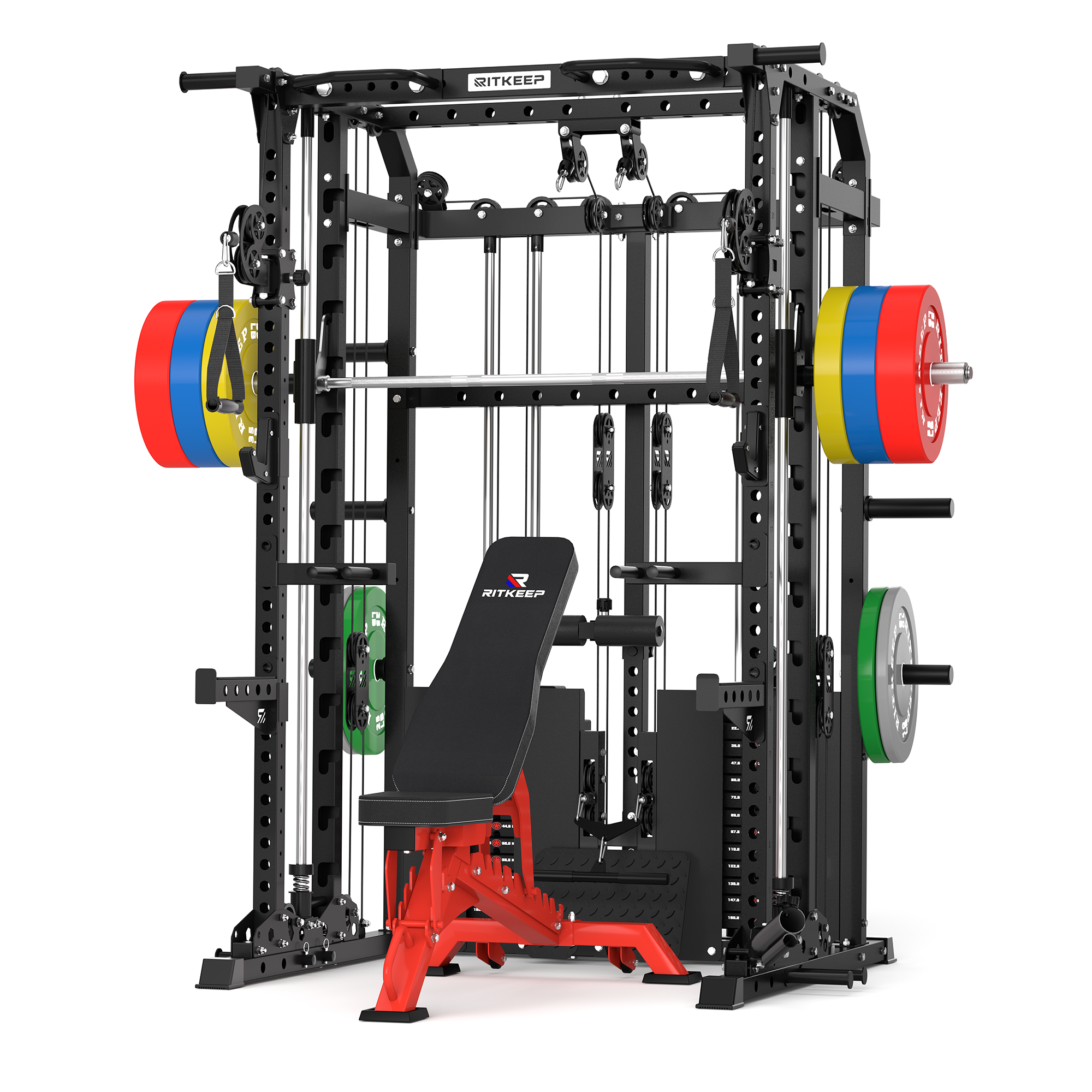

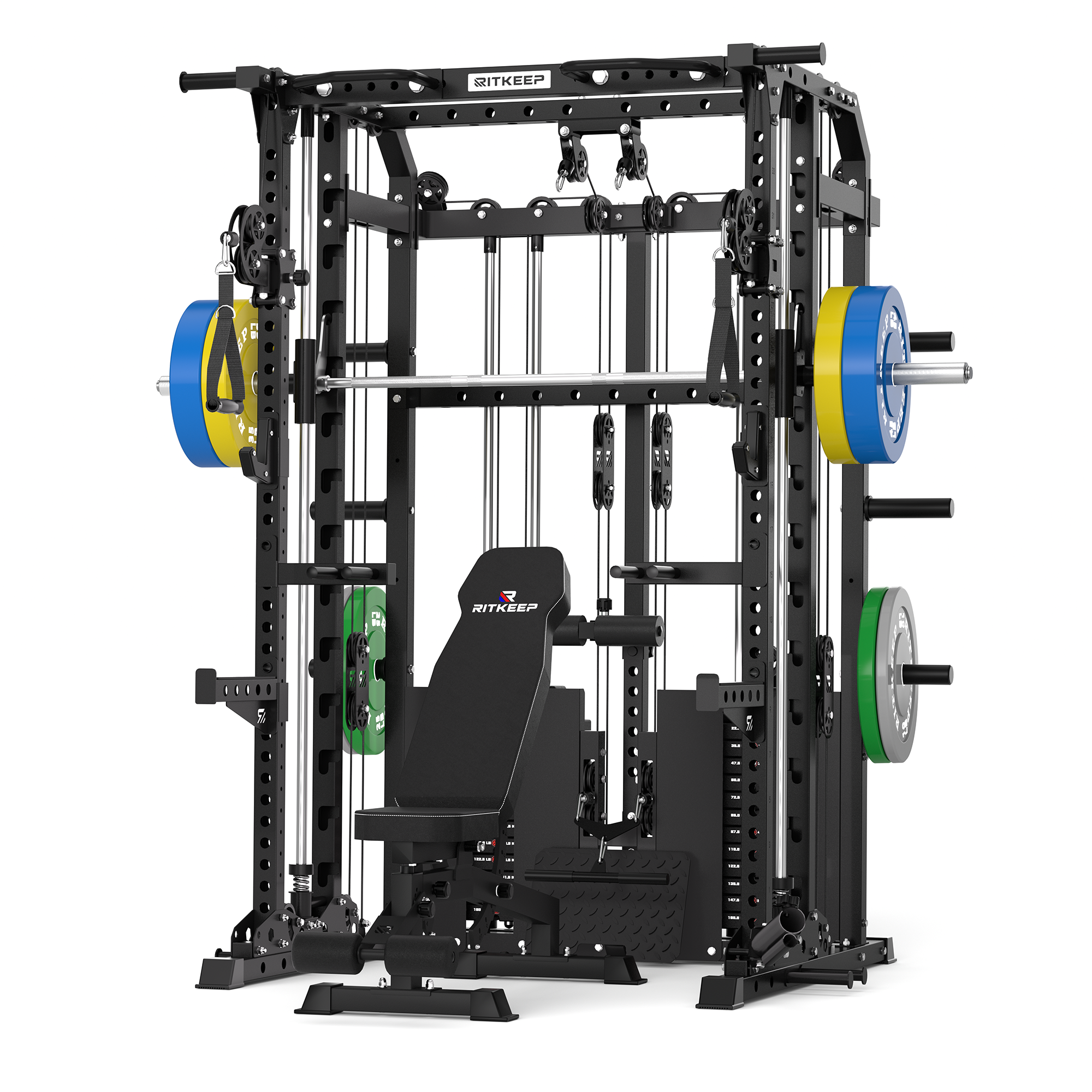

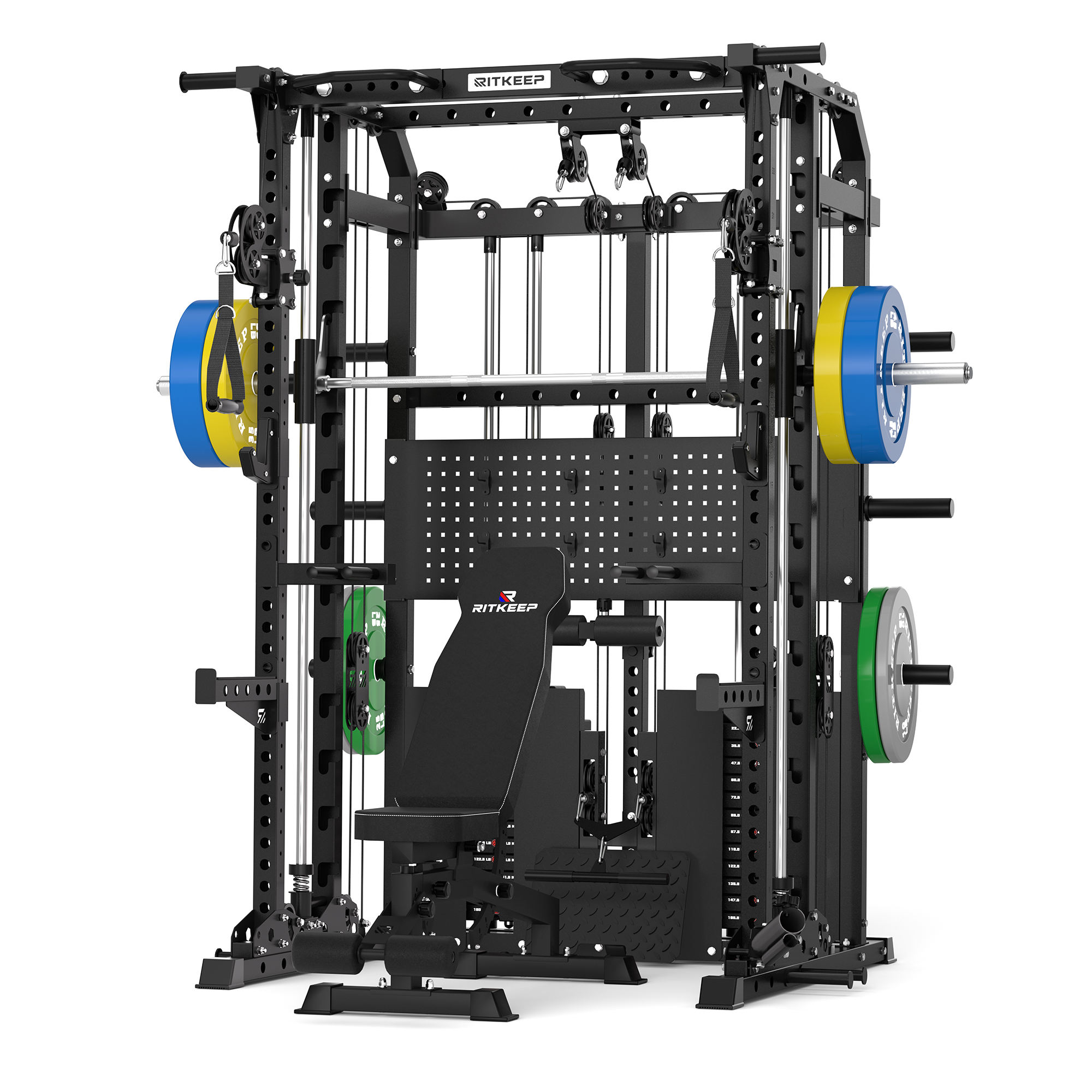

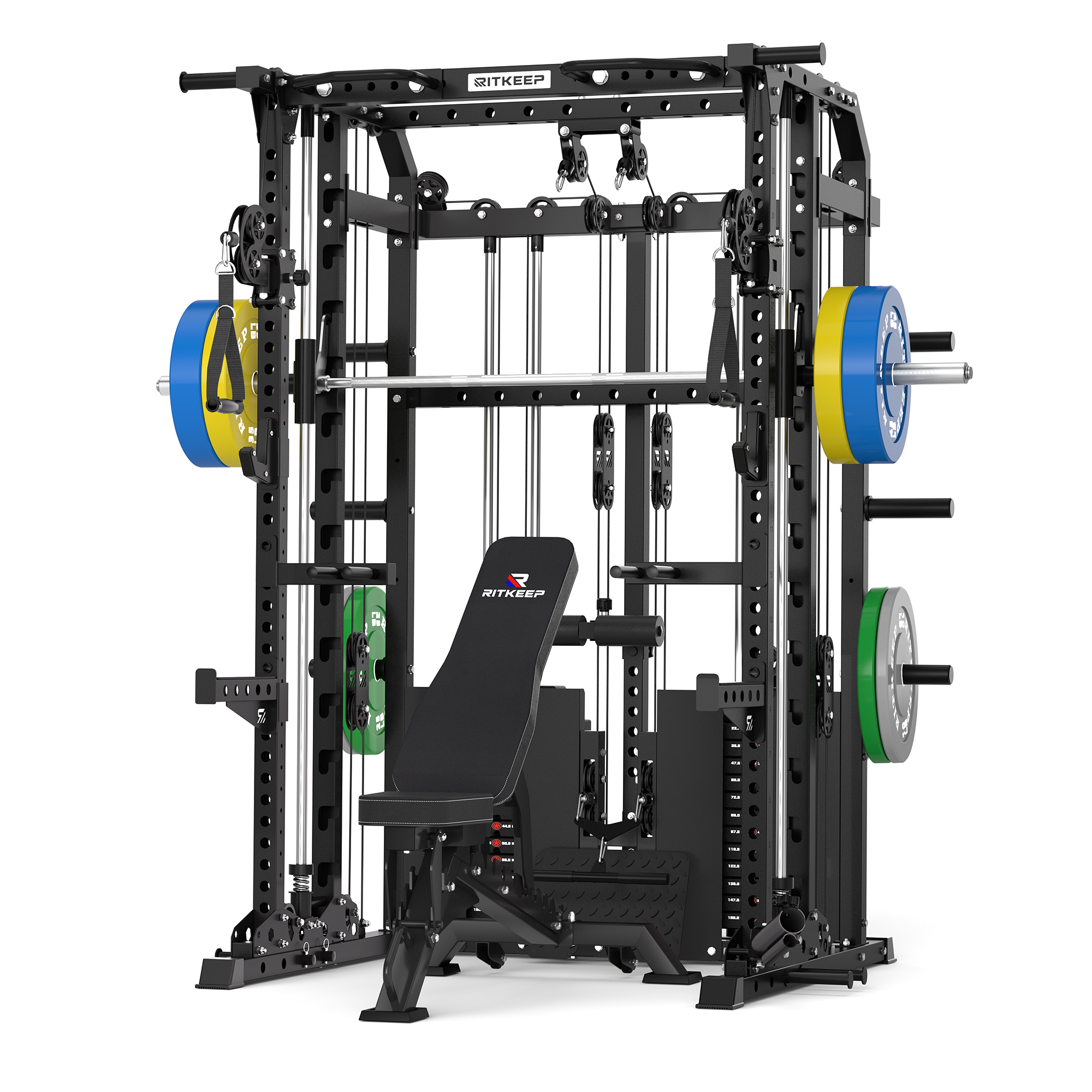

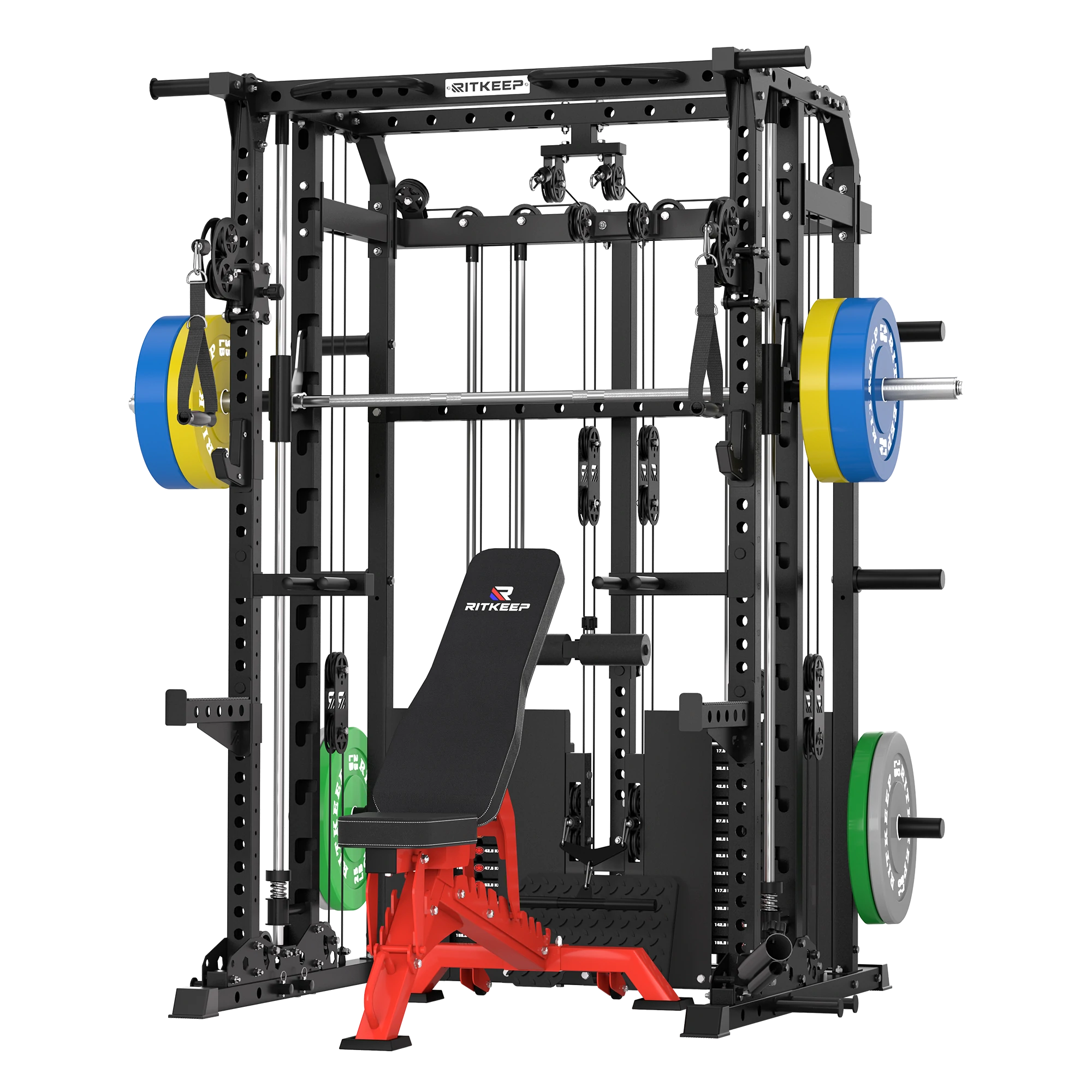

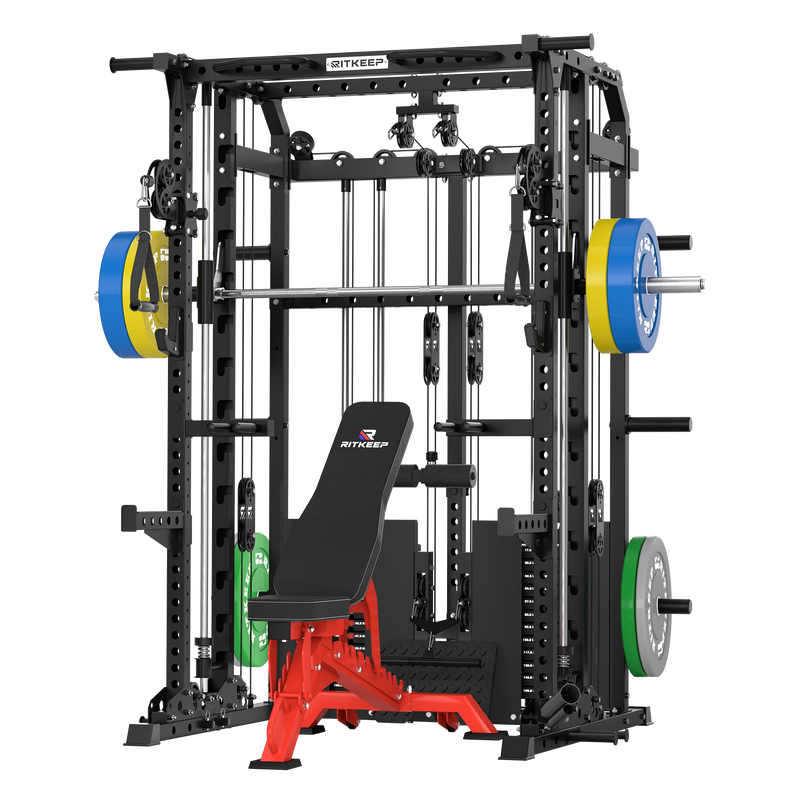

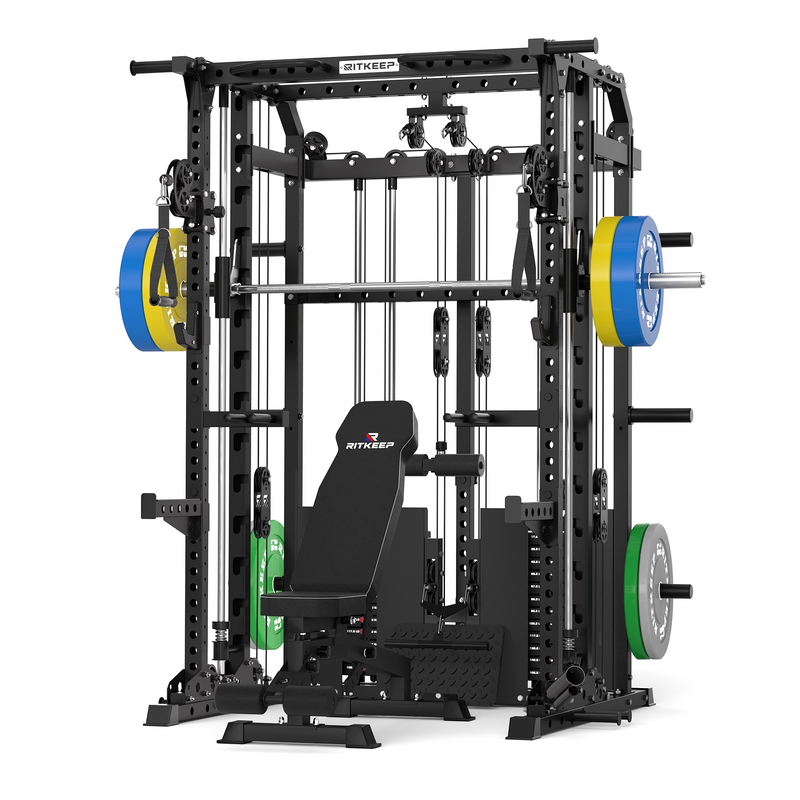

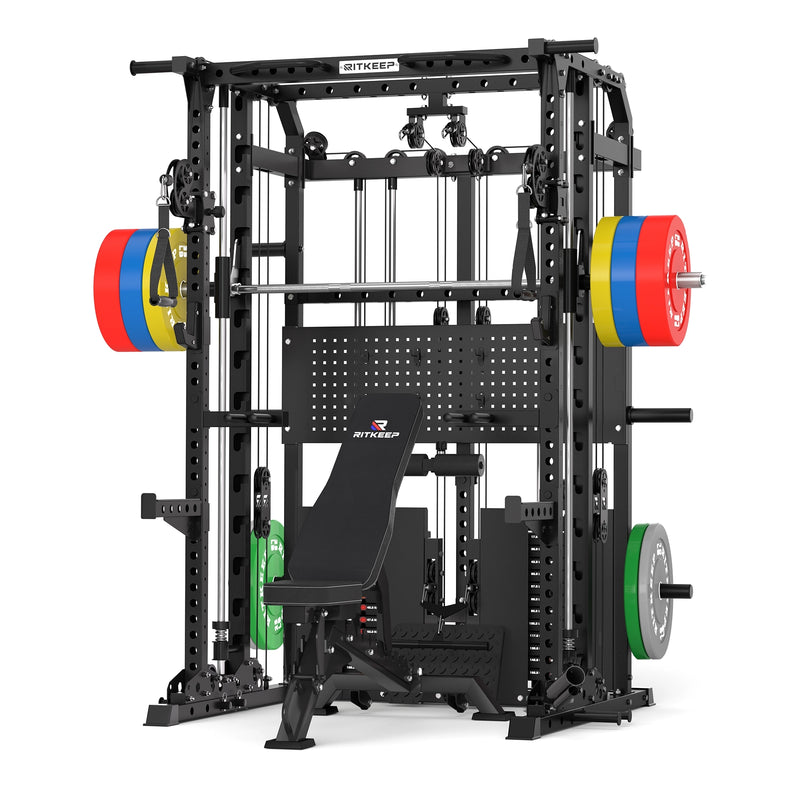

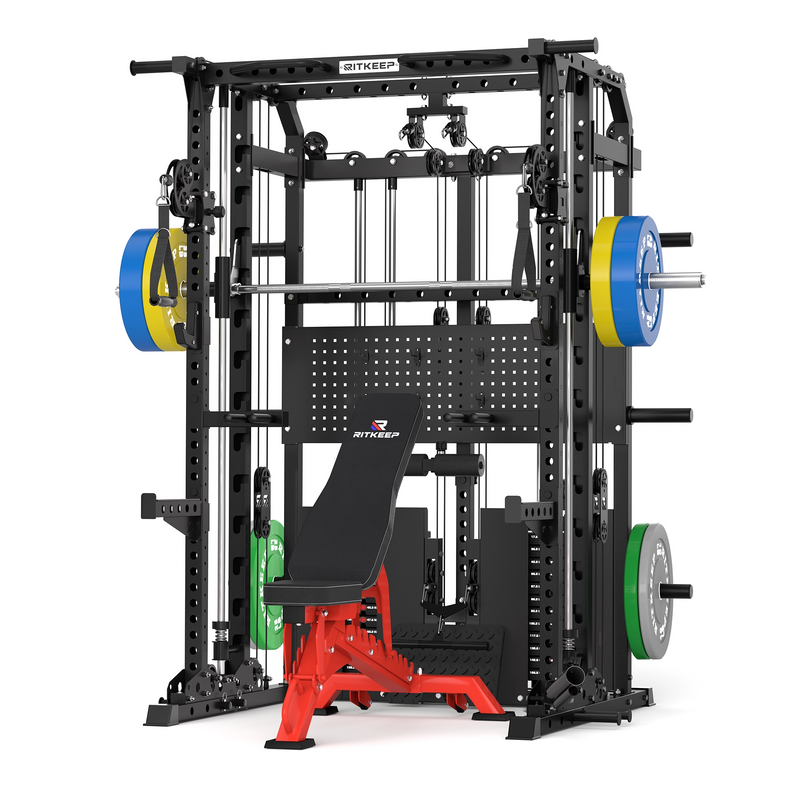

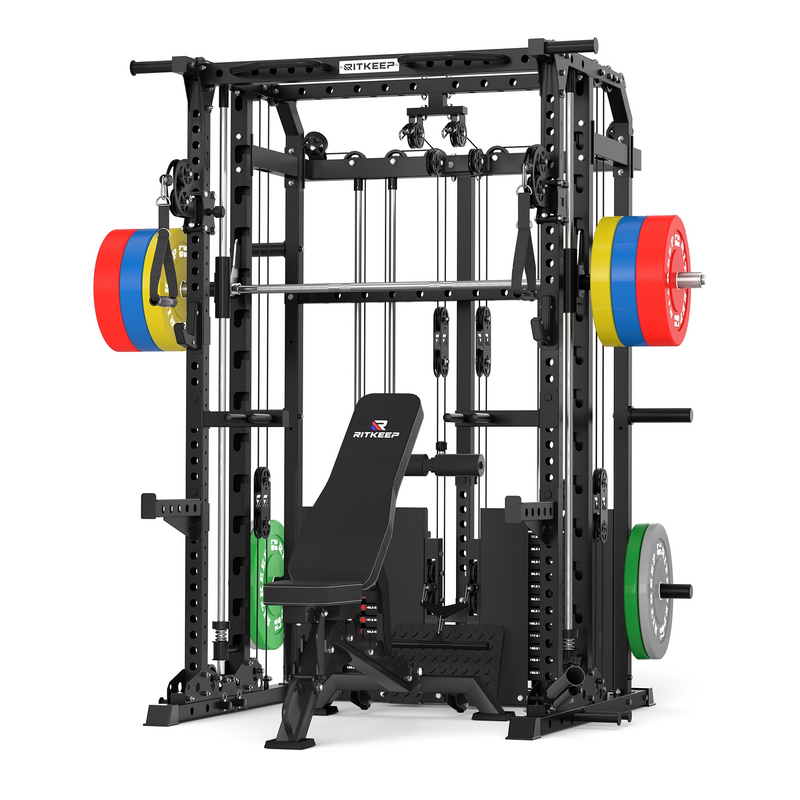

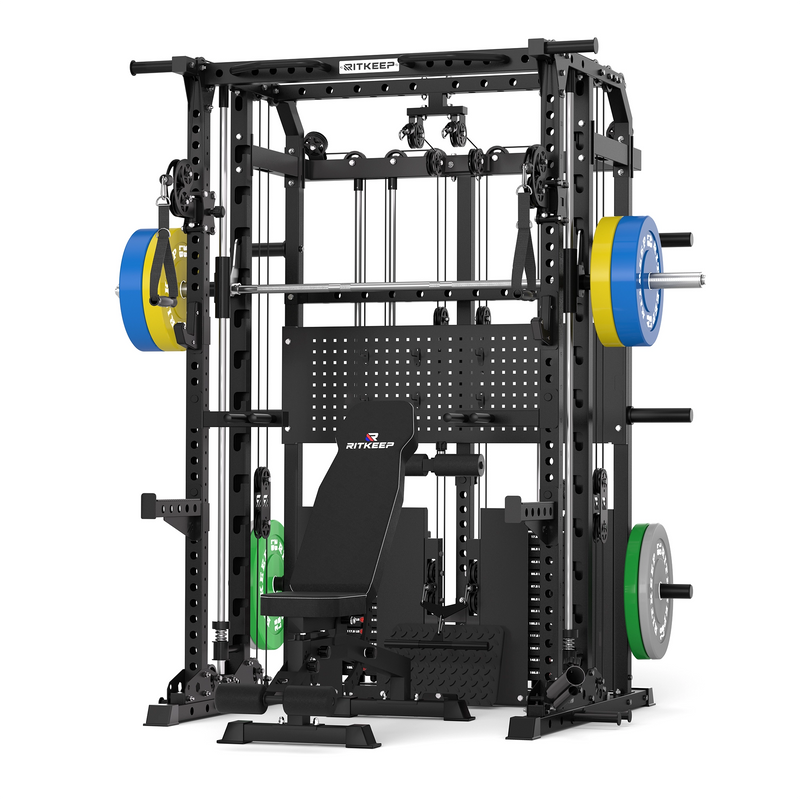

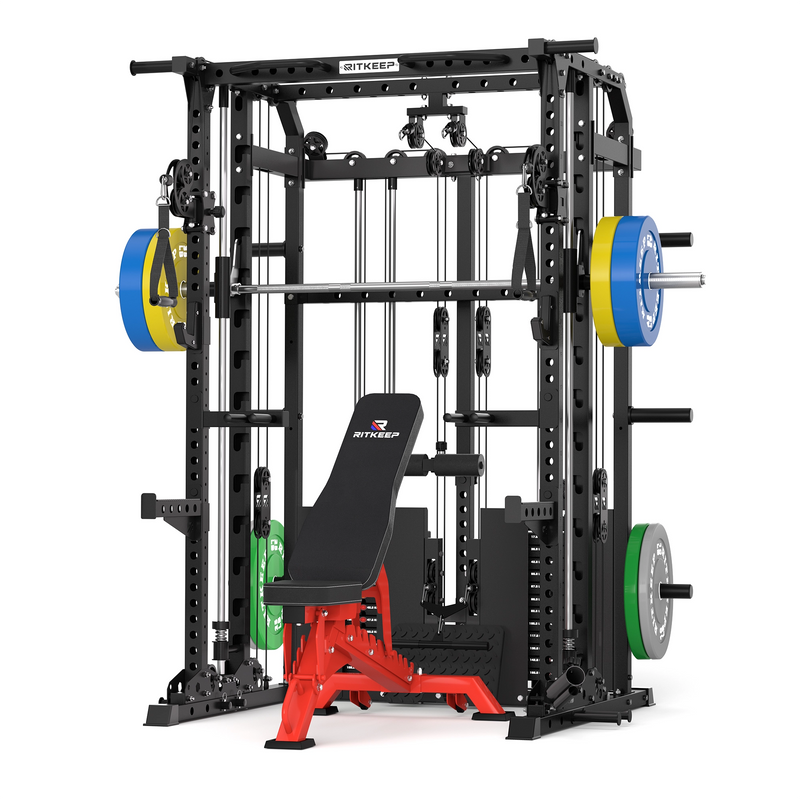

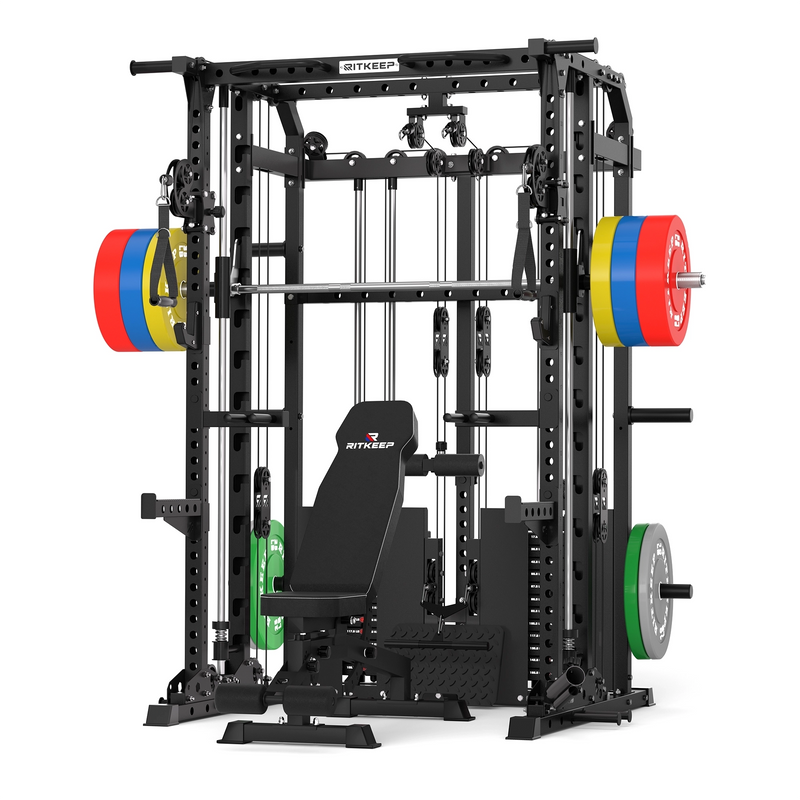

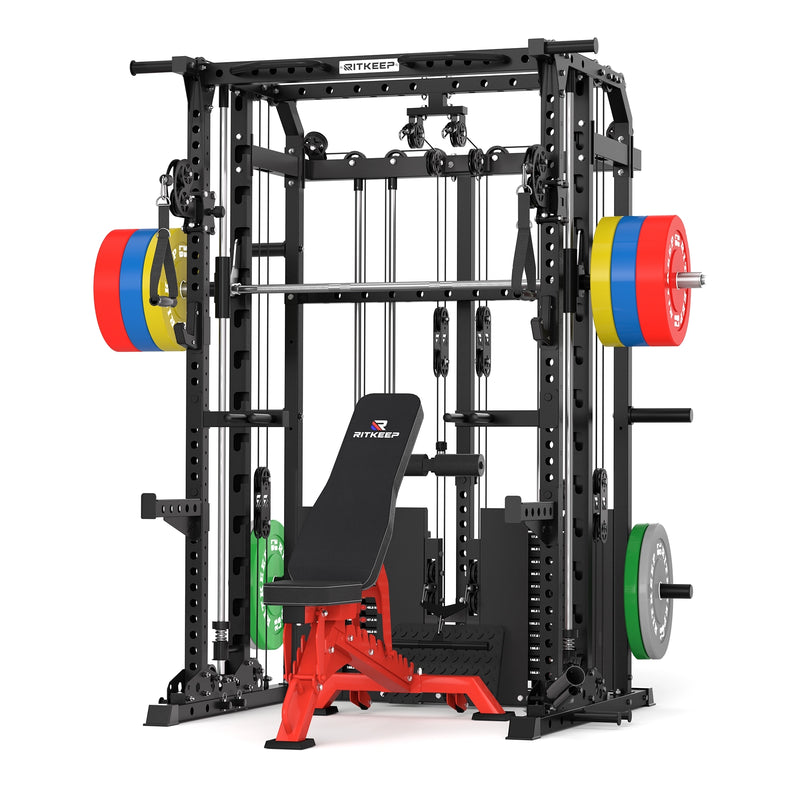

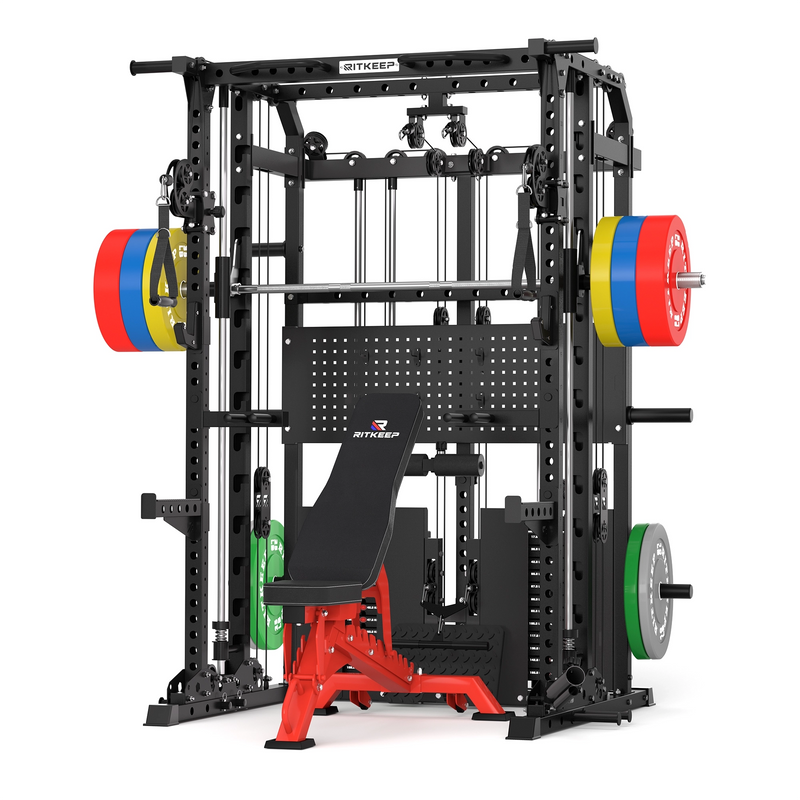

The ANVIL S1 combines a Smith machine, power rack, cable crossover, pull-up station, lat pulldown and low row stations in one system. With a 2,200 lb maximum load capacity and 12 included attachments, it supports full-body training—from squats and bench presses to cable flyes and rows.
310 LB TOTAL WEIGHT STACKS
- Dual-Stack Pulldowns & Rows: Dual 155 lb rear weight stacks work together for lat pulldowns and seated rows, letting you train from a centered position inside the rack.

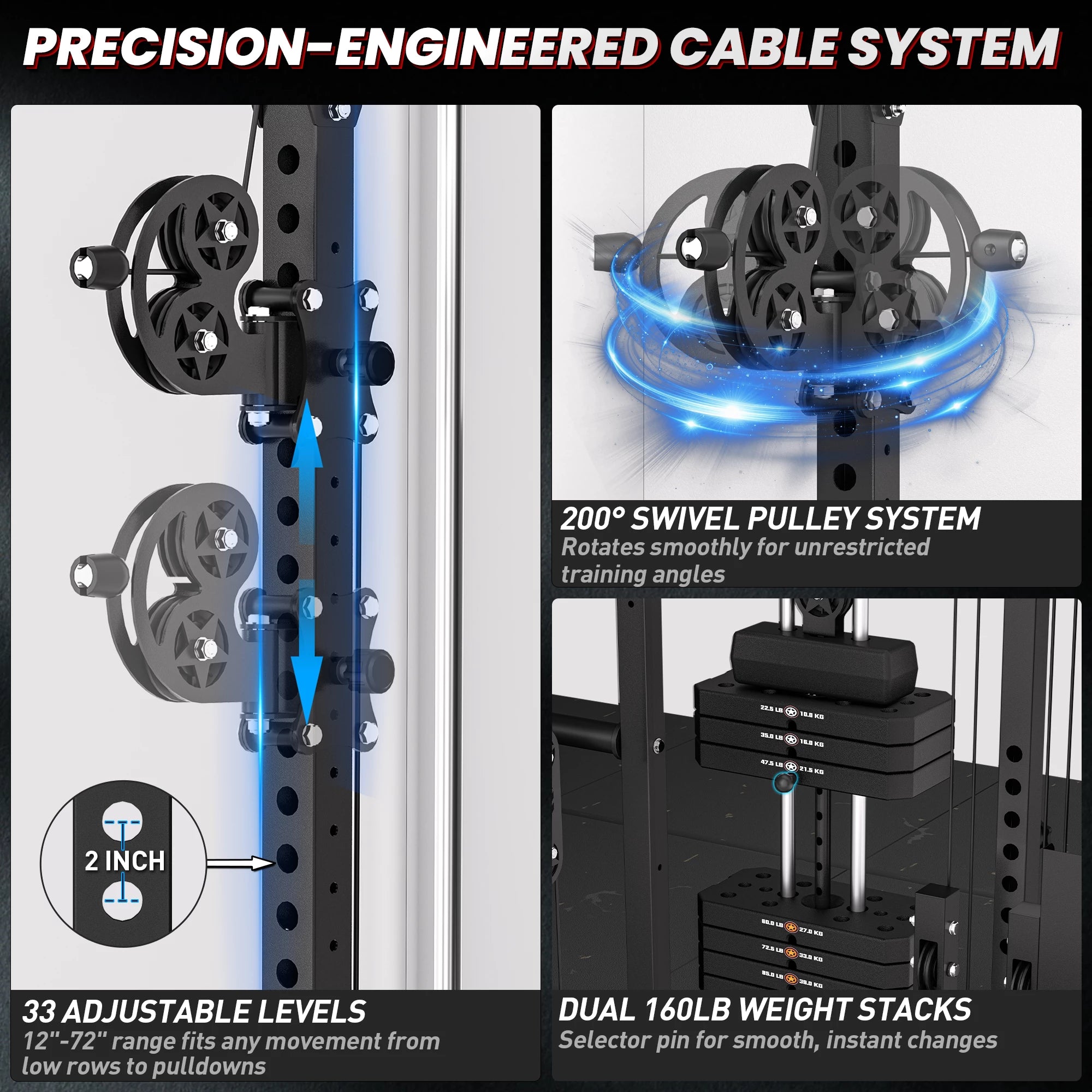

- Independent 2:1 Front Pulleys: Set the weight on each side separately for cable flyes, lateral raises, and single-arm curls. The 2:1 pulley ratio provides approximately half the selected stack weight at each handle.

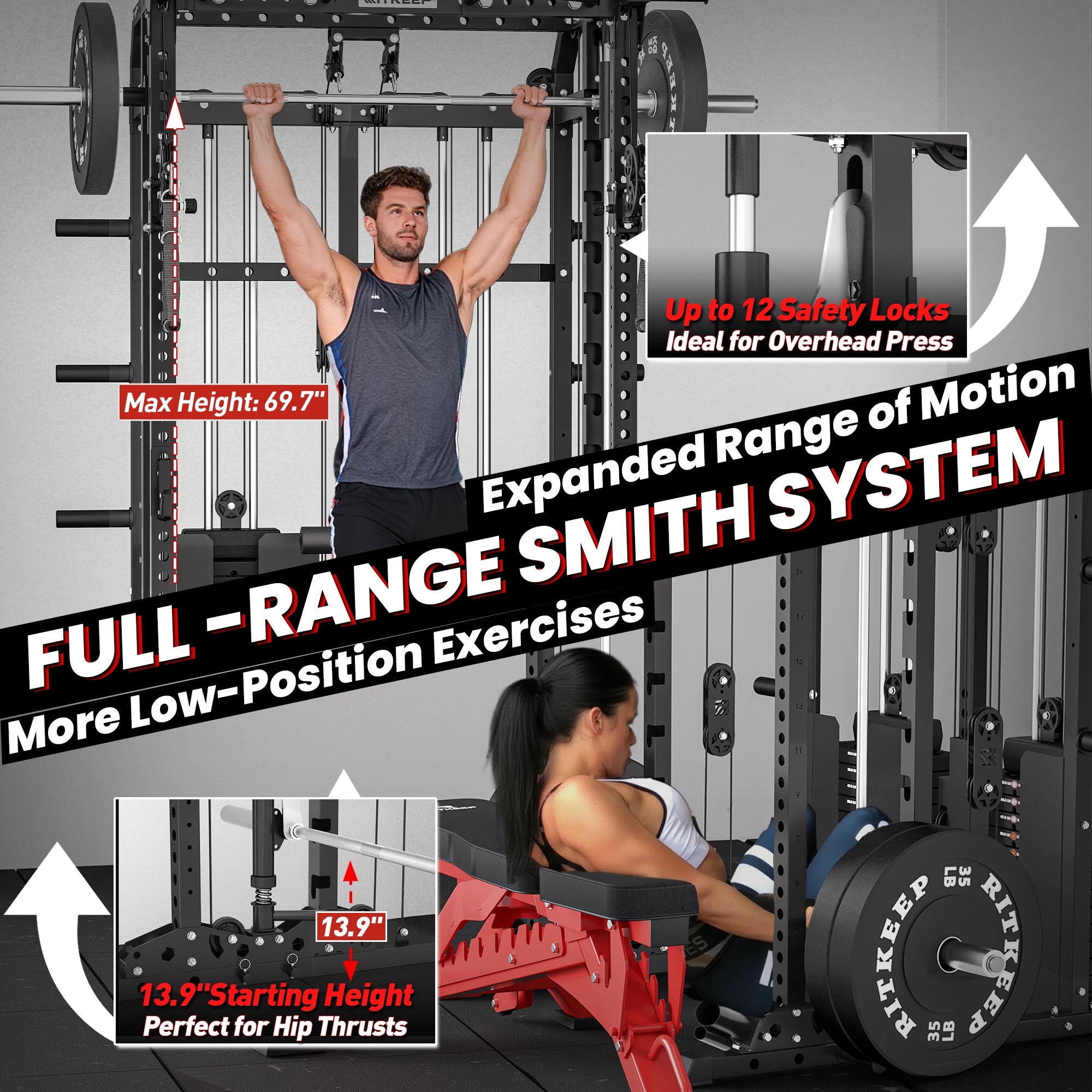

SMITH MACHINE TRAINING SYSTEM

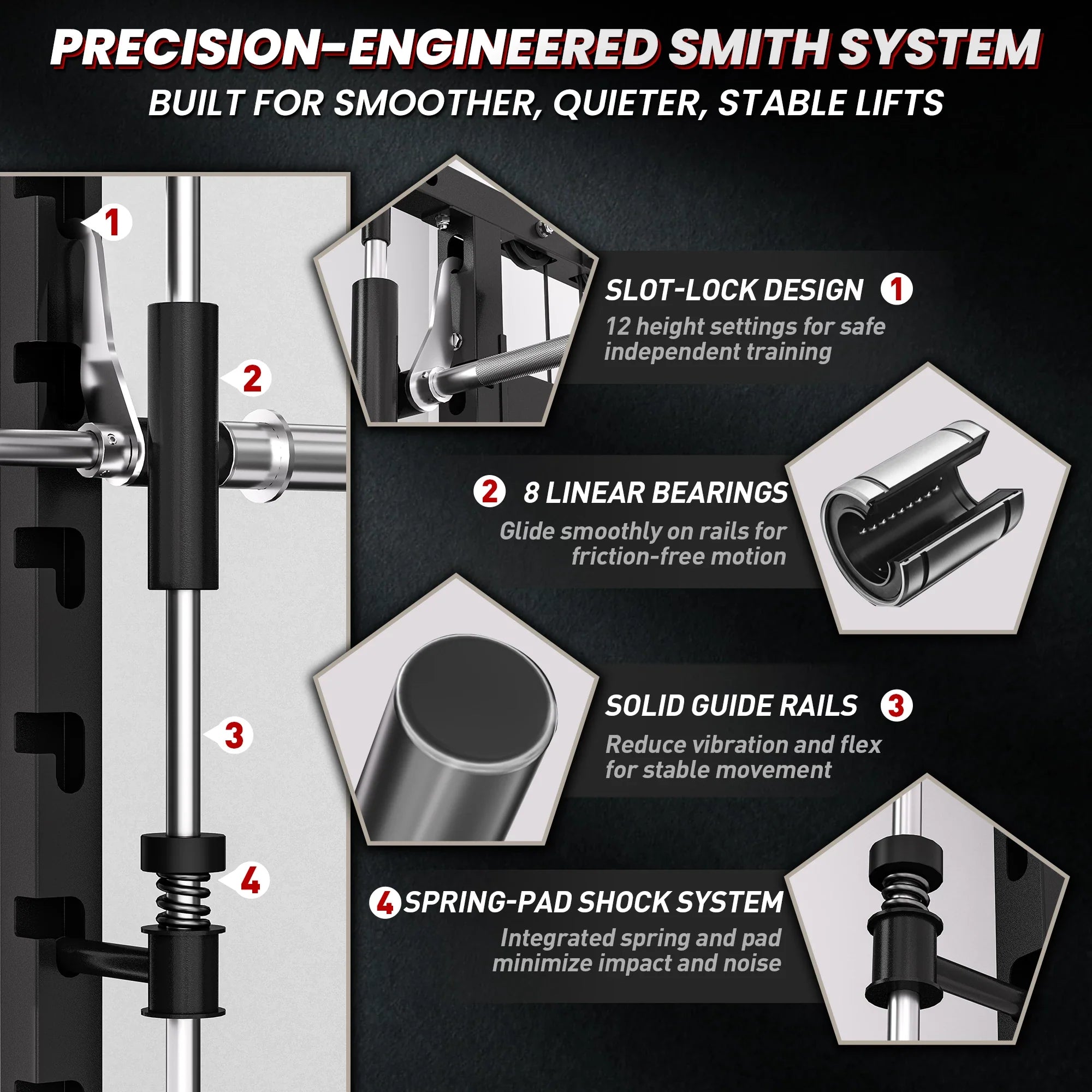

- Guided Bar Movement: The bar glides smoothly on linear bearings along fixed guide rails, letting you focus on squats, bench presses, and shoulder presses without worrying about balancing the weight.
-
Safety Catches & Spring Stoppers: Re-rack the bar securely at multiple height positions, while heavy-duty bottom springs absorb impact if the bar drops.
- Top Bar Storage: Secure the Smith bar at the top of the frame to free up space for lat pulldowns, seated rows, and cable flyes.
What’s Included in this Complete Home Gym Package?
SPECIFICATION

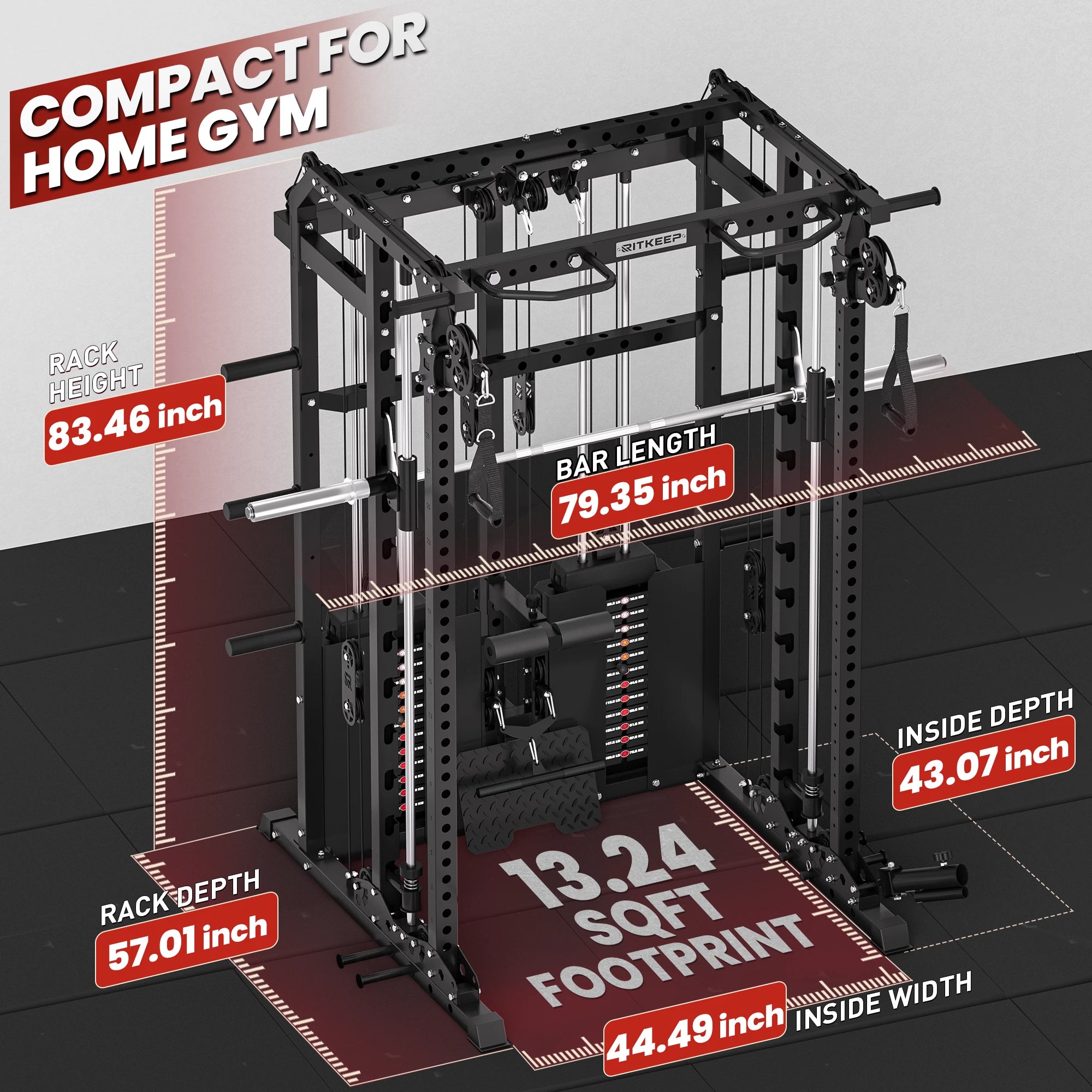

Dimensions & Footprint
| Rack Weight | 665 lb |
| Rack Height | 83.5 inch |
| Rack Width (Including Smith Bar) | 79.5 inch |
| Rack Depth | 57.1 inch |
| Inside Width | 44.5 inch |
| Inside Depth | 43.1 inch |

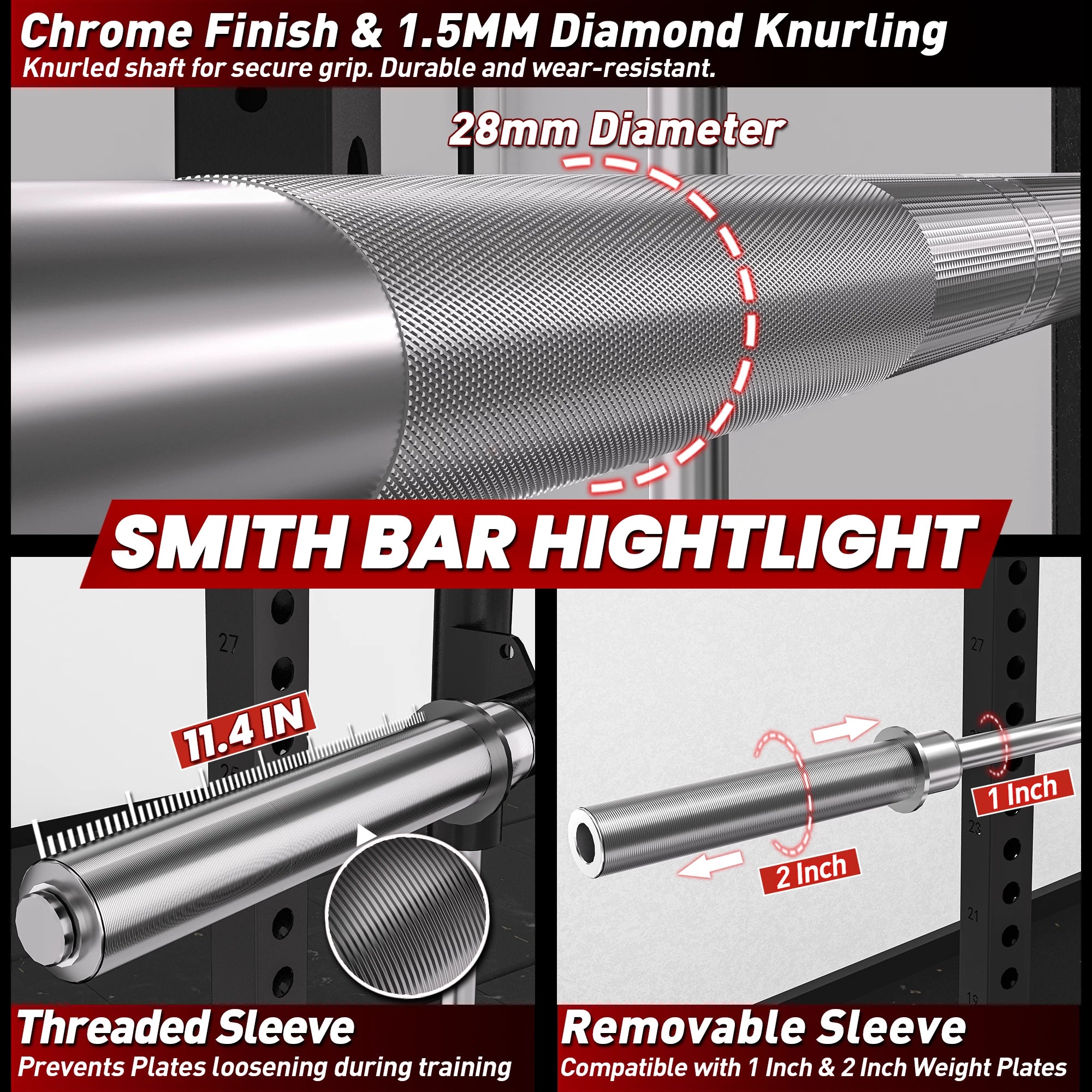

| Smith Bar Weight | 35 lb |
| Smith Bar Length | 79.5 inch |
| Smith Bar Sleeve Length | 11.4 inch |
Cable Pulley
| Weight Stack | 2 × 155 lb Stacks |
| Pulley Ratio | 2:1 |
| Pulleys | Nylon |
| Cable | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 33 Levels |

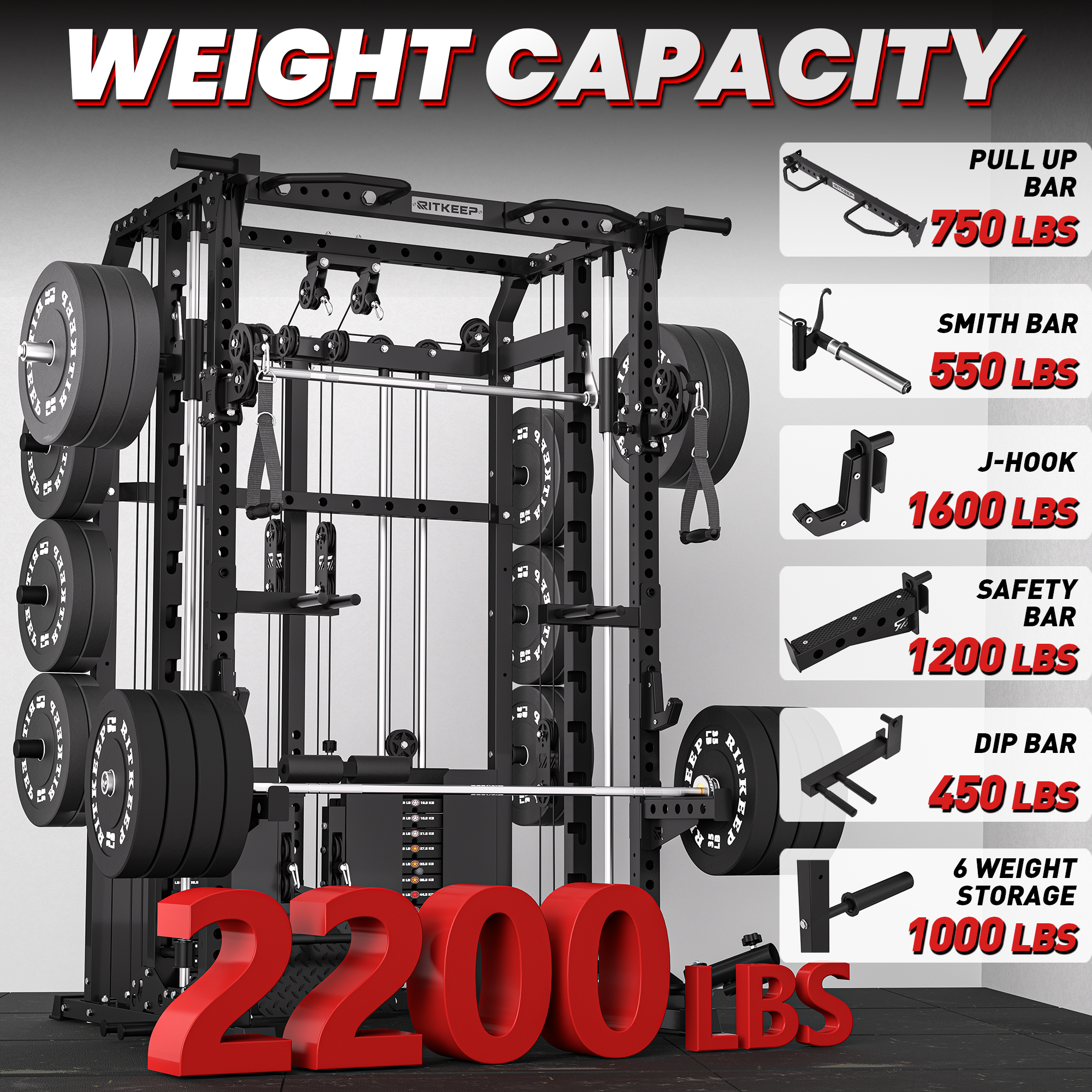

Max Load Capacity
| Machine | 2200 lb |
| Cable Pulley | 1500 lb |
| J-Hooks | 1600 lb |
| Safety Spotter Arms | 1200 lb |
| Pull-Up Bar | 750 lb |
| Dip Station | 450 lb |
| Lat Pulldown Bar | 350 lb |
| Straight Bar | 250 lb |
| Landmine & T-Bar | 600 lb |
Frame
| Steel Type | 14-Gauge Steel |
| Square Tube | 50 mm × 50 mm |
| Metal Thickness | 2 mm |
| Coating | Powder Coated |
ANVIL S1 Installation
WARRANTY
Warranty Period
Ritkeep provides a comprehensive warranty coverage for a duration from the date of purchase. During this period, we guarantee that your product will be free from any defects in material, functionality, and workmanship. The warranty is exclusively applicable to the original purchaser of the product, as long as you remain the owner. It is important to remember that the warranty is non-transferable.
Construction
FOR ALL WARRANTIES * Warranty may be voided for any product which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis. Please note that our warranty does not apply to product or barbell service and maintenance. We recommend you properly service and maintain your product for life long product longevity.
** Warranty against bending does not cover any bar which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Negligent or faulty use includes abusive dropping of the bar (i.e., dropping the bar on a box, bench, spotter arms or pins in a power rack, excessive dropping with insufficient or damaged bumpers, excessive dropping with iron plates, excessive dropping on concrete or similar surfaces, and similar usage). Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis.
| Material | Warranty |
|---|---|
| Frames | 2 Year Warranty |
|
Pull-Down Bar, Dip Bar, Landmine, T-bar, Safety Arm, D-Shape Handle, J-Hooks |
1 Year Warranty |
| Wheels, Cables | 90 Day Warranty |
| Dumbbells | 2 Year Warranty |
| Weight Plate | 2 Year Warranty |
| Weight Bench | 1 Year Warranty |
To learn more about RITKEEP's Warranty Policy, please click here.

Store the Smith bar at the top for more room during cable exercises.

Adjust the padded rollers up and down, forward and back for a comfortable fit over your thighs.

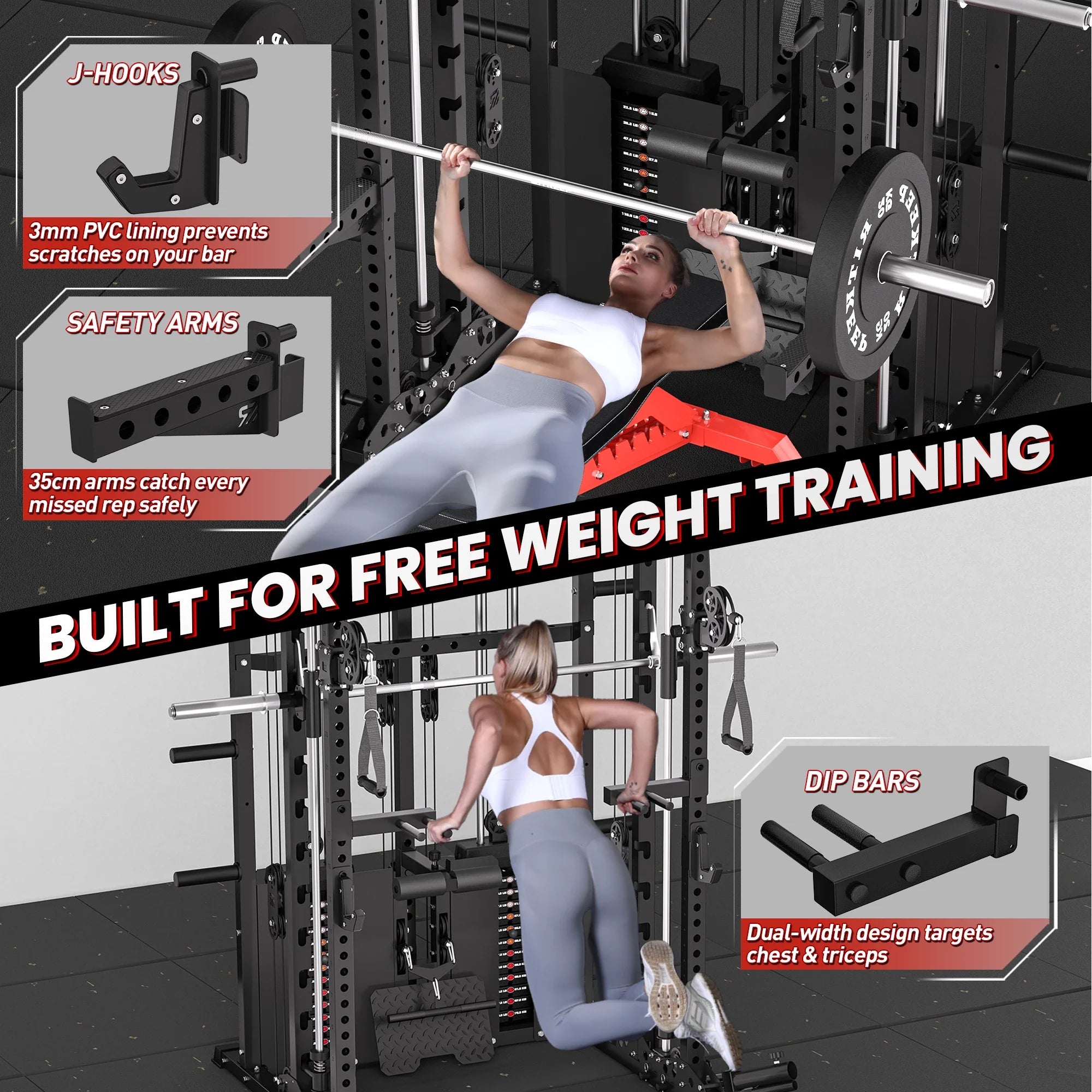

The 13.4-inch safety arms provide backup support during failed lifts.

Rated for 1600 lb, the J-hooks securely support your barbell during heavy lifts.

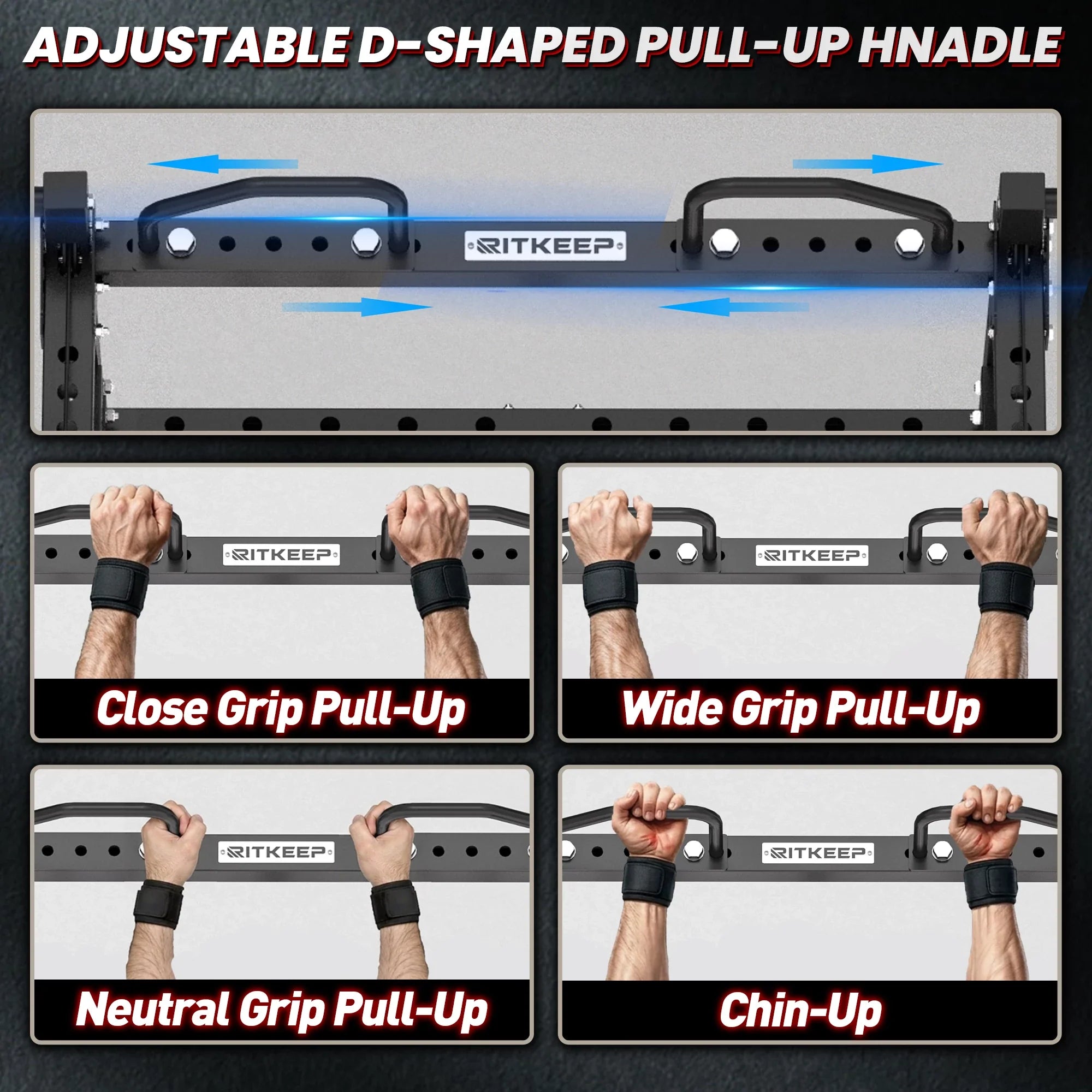

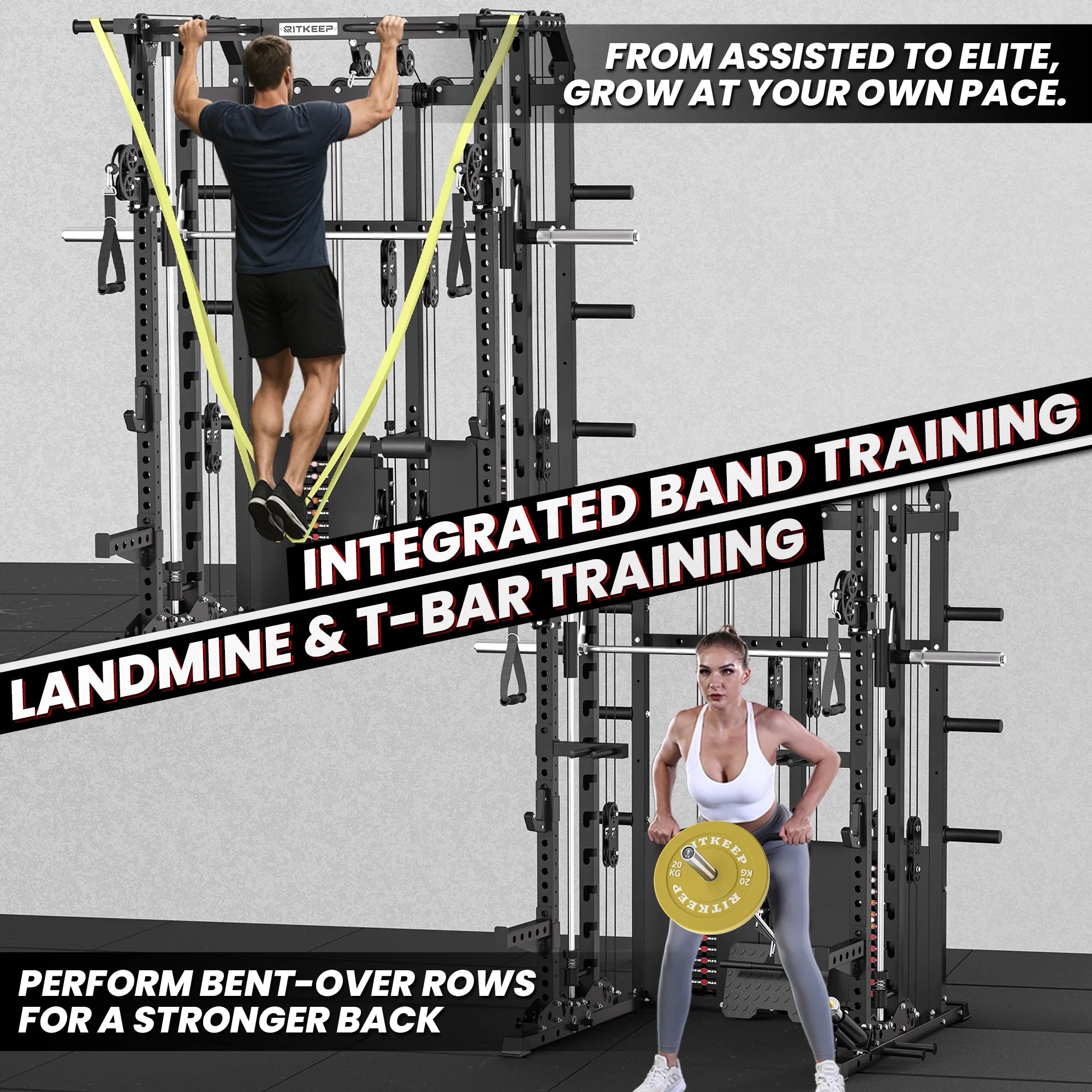

Use lower pegs to add squat resistance and upper pegs for assisted pull-ups.

The 360° rotating landmine supports multi-directional rows and rotational exercises.
Frequently Asked Questions
What are the main highlights of the ANVIL S1?
The ANVIL S1 features dual independent pulleys, a 310 lb rear weight stack, a removable leg holder, and an integrated foot plate for versatile strength training. Its dedicated lat pulldown and low row stations let you train comfortably inside the rack, providing more room for proper positioning and a more natural pulling path without having to set up outside the machine.
Is there enough room for a standard bench inside the S1?
Yes. The ANVIL S1 features a spacious 13.3 sq ft training area and a detachable leg hold-down, providing ample room for a standard weight bench so you can comfortably perform flat and incline bench presses.
Can the ANVIL S1 weight stacks be upgraded with additional weight?
Yes. The ANVIL S1 weight stacks can be upgraded to 390 LB total (with 3 additional plates added per side).
What exercises does the ANVIL S1 target?
The ANVIL S1 is a full-body home gym system. It supports Smith Machine exercises like squats, deadlifts, bench presses, and shoulder presses; cable exercises like lat pulldowns, cable flys, bicep curls, and cable rows; free weight exercises like barbell presses and dumbbell lifts; and functional training with resistance bands. It's perfect for strength, hypertrophy, and functional workouts.

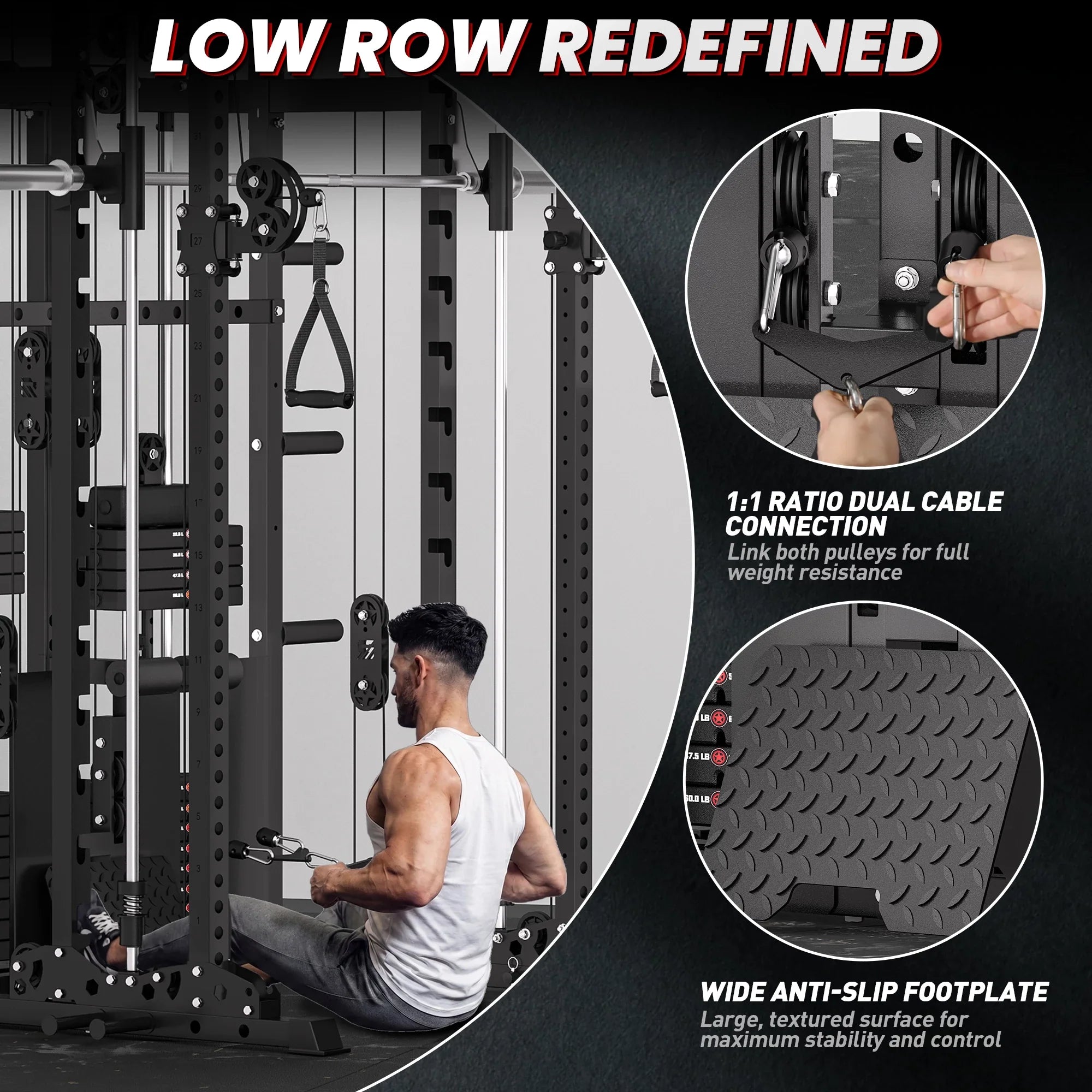

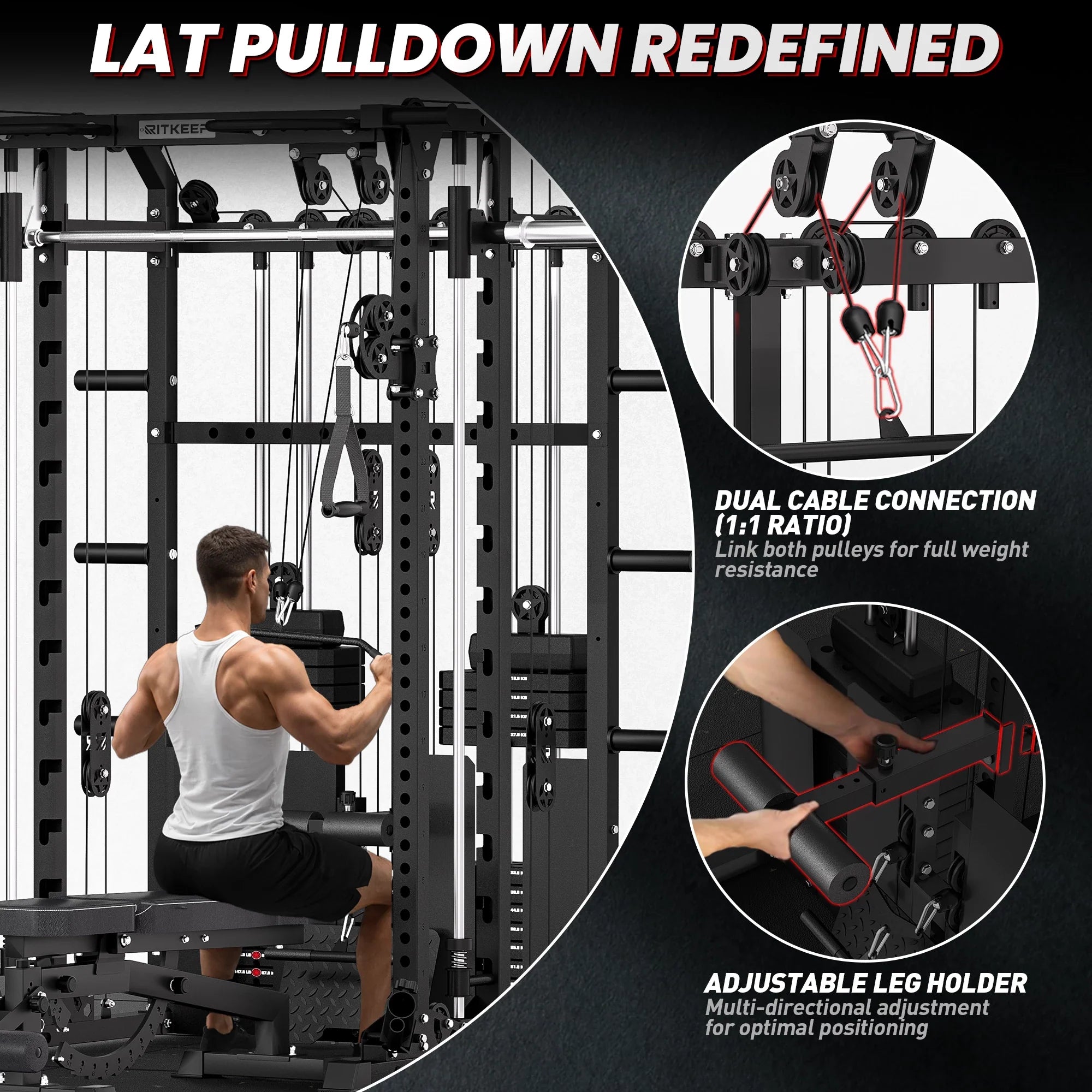

How does the S1 weight stack work during lat pulldowns and seated rows?
The ANVIL S1 allows both 155 LB weight stacks to be used simultaneously for exercises such as lat pulldowns and seated rows. When both stacks are engaged, the total selected weight is up to 310 LB.
With the 2:1 pulley ratio, the actual resistance during training is approximately 155 LB, providing smoother cable movement and a more controlled lifting experience.
Is the ANVIL S1 suitable for multiple users at the same time?
Yes. The ANVIL S1 features a dual independent cable pulley system, allowing up to three users to train simultaneously with different exercises.
