DESCRIPTION

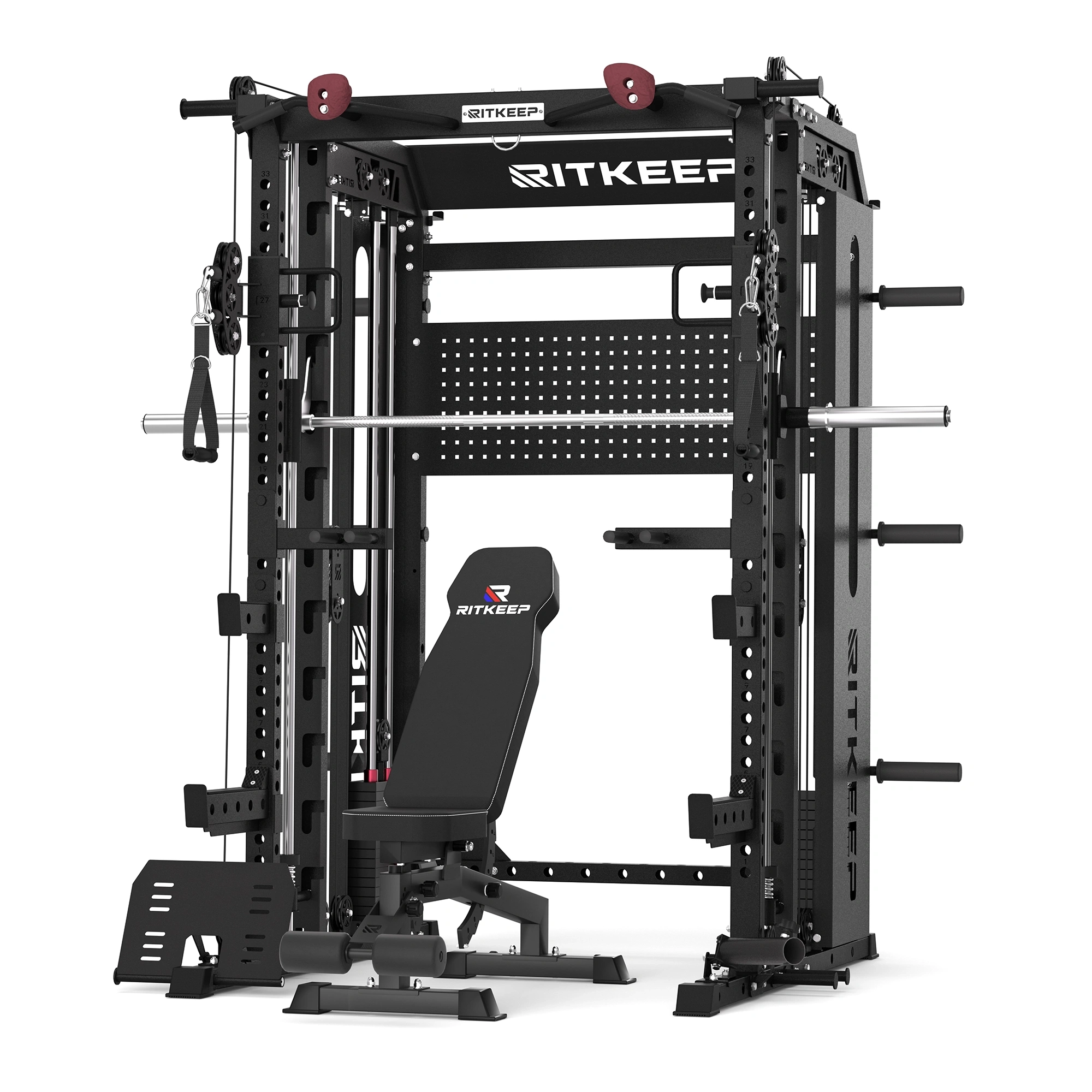

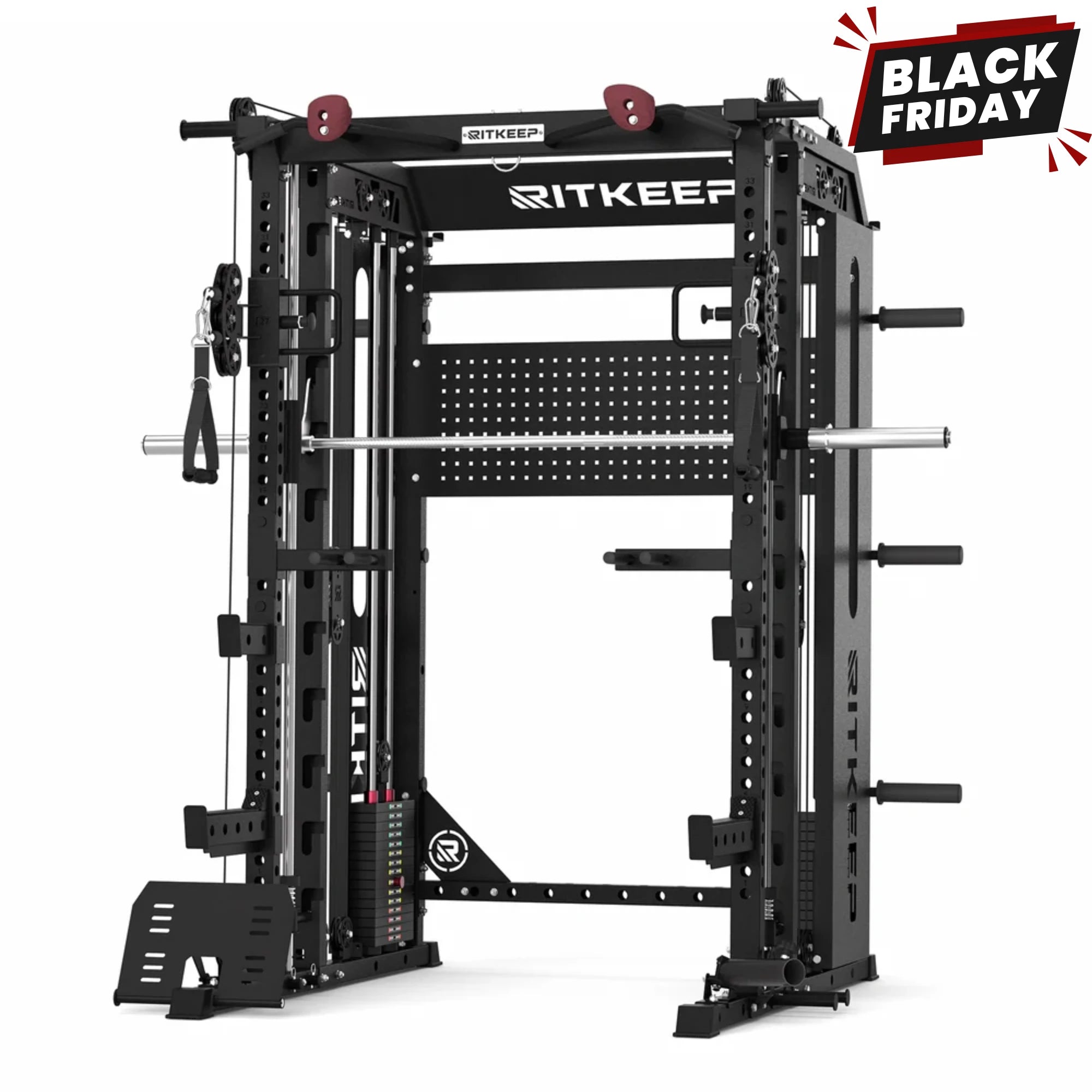

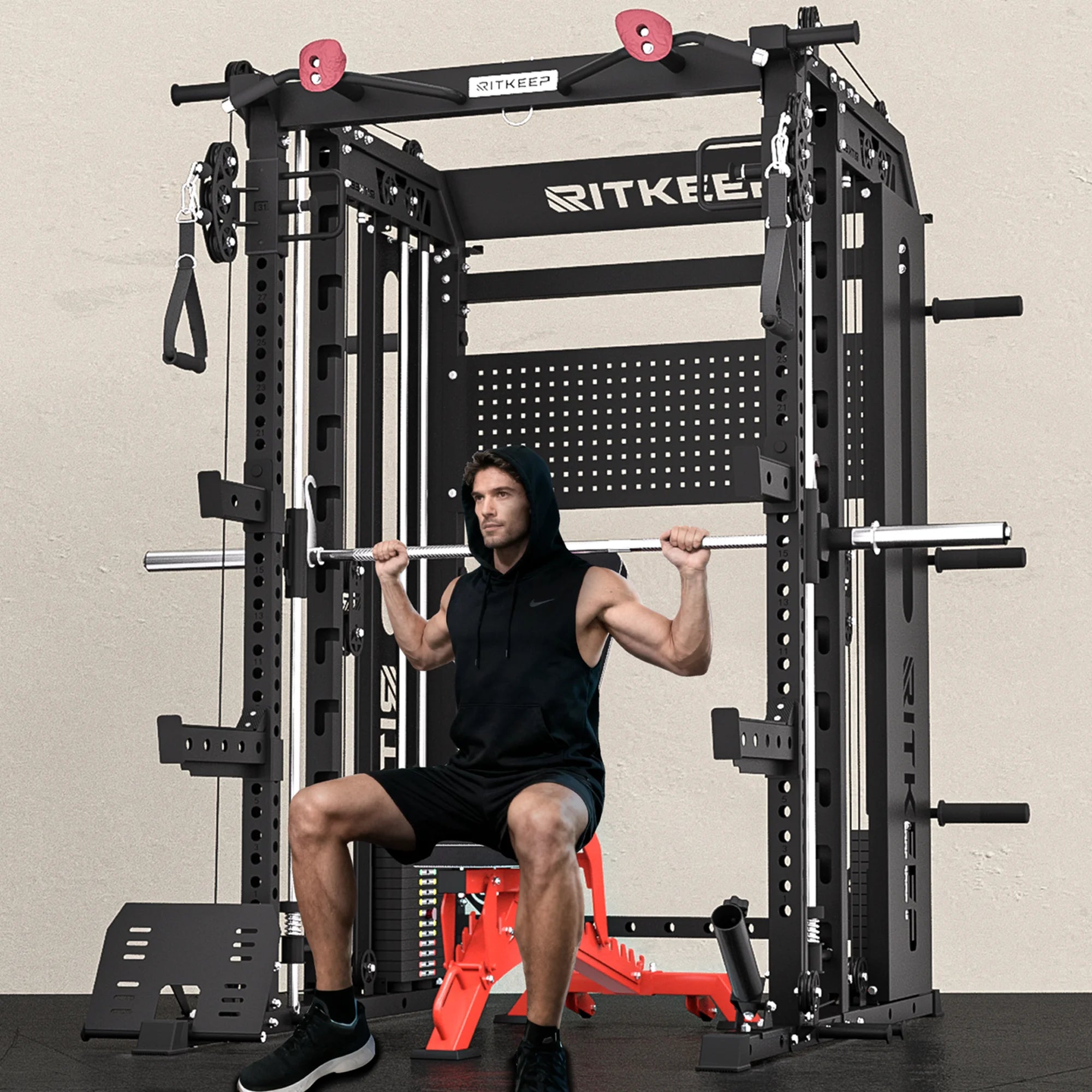

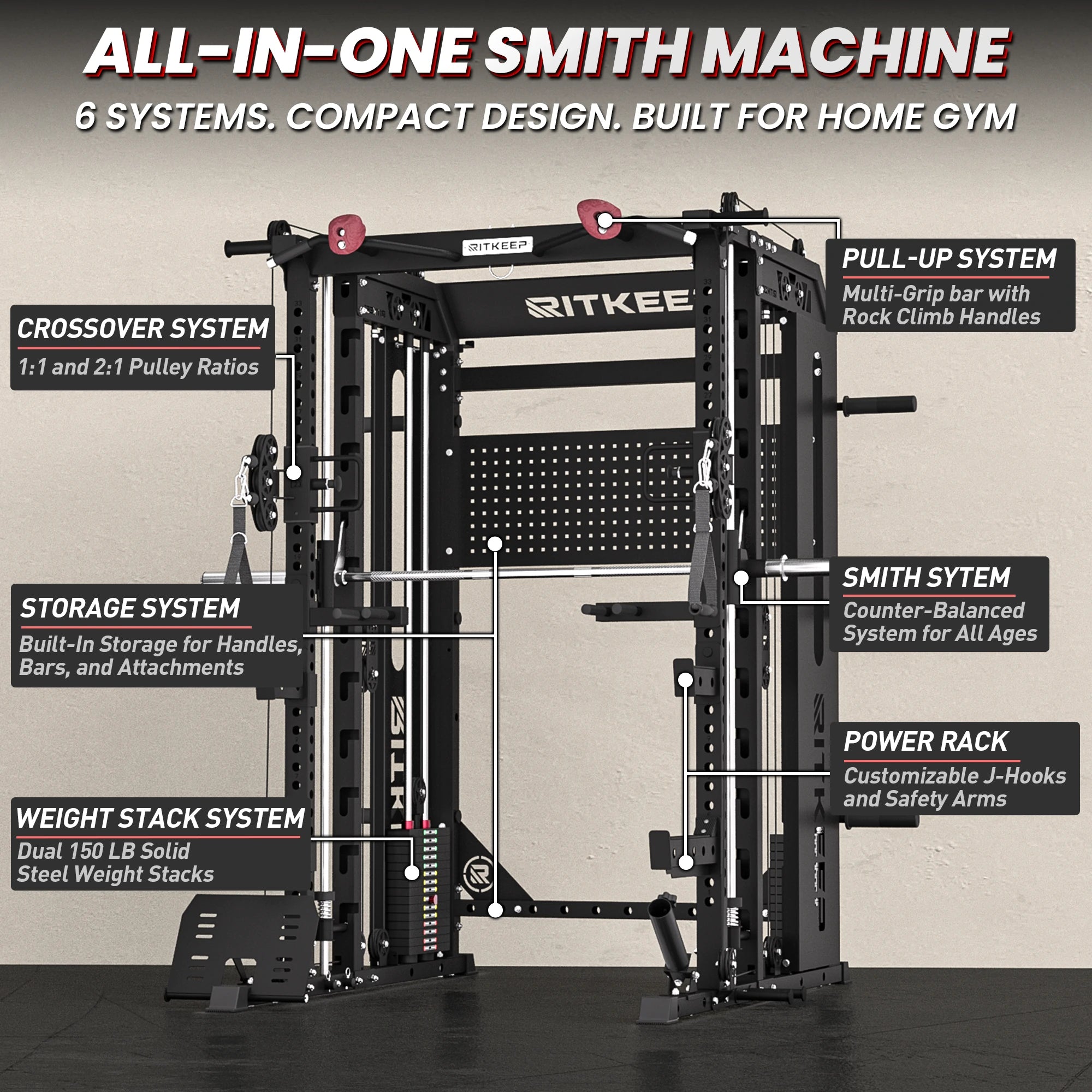

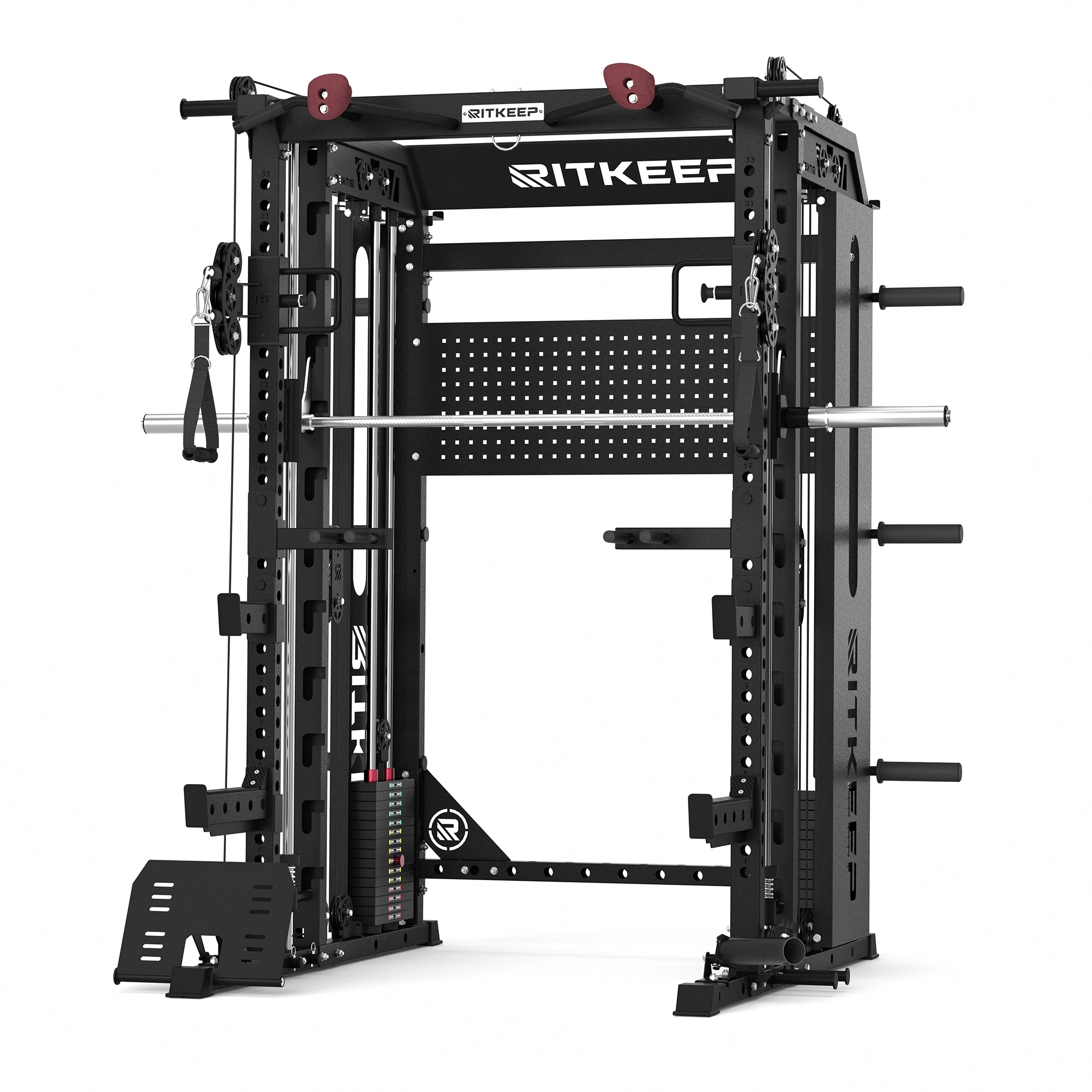

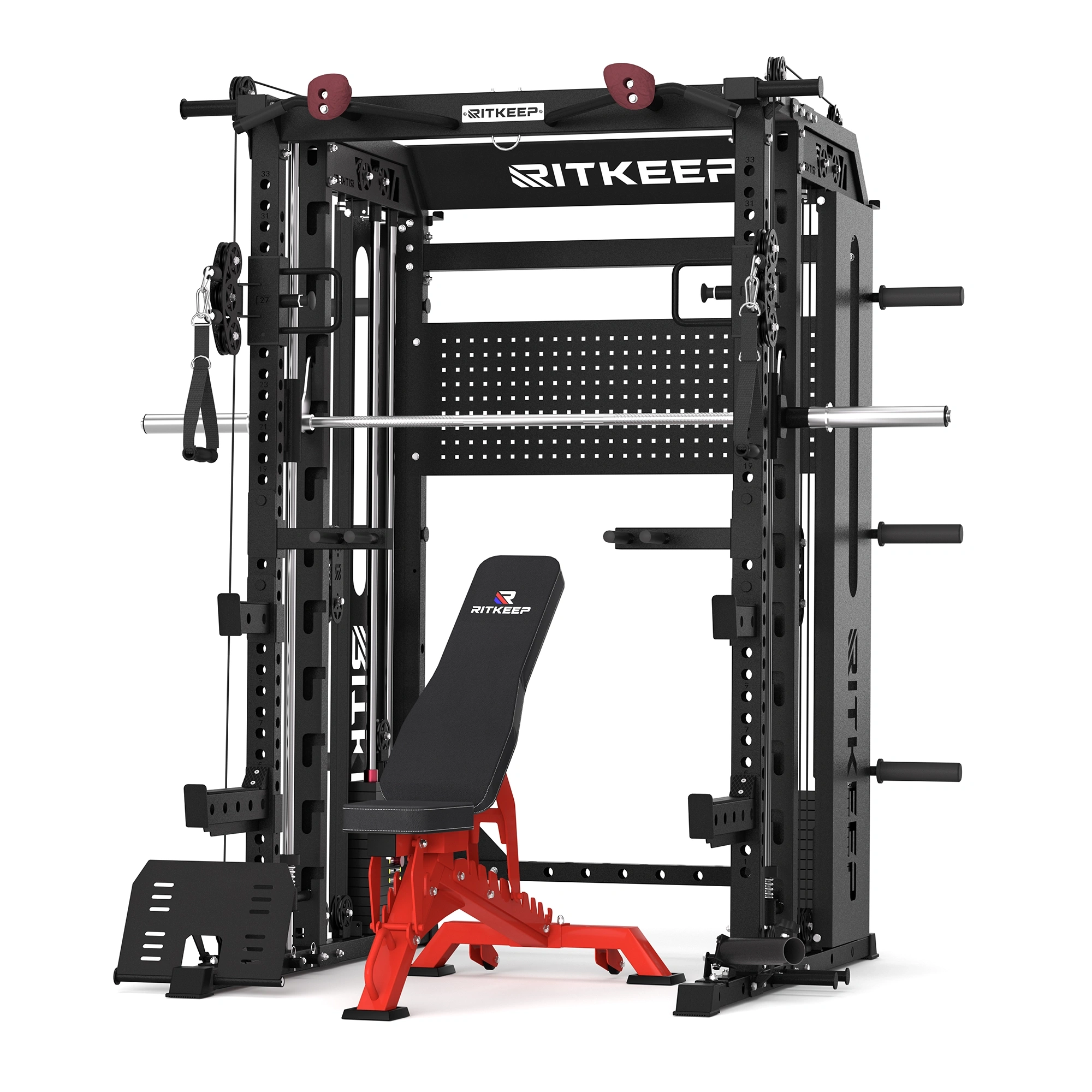

The NIMITZ N1 combines Smith Machine, Power Rack, Cable Crossover, Lat Pulldown, Low Row, and Pull-Up Station. It features 300 LB steel weight stacks, switchable 1:1 & 2:1 pulley ratios, and a counterbalanced Smith bar starting at just 5 LB of resistance. An ideal choice for beginners and experienced lifters looking to build a home gym.
DUAL INDEPENDENT PULLEY SYSTEM
- 2 x 150 LB Steel Stacks: Quickly adjust resistance in 10 LB increments using the selector pin, without loading weight plates. Solid steel plates provide consistent weight and resist cracking and wear.
-
Switchable 1:1 & 2:1 Ratios: Switch between 1:1 and 2:1 pulley ratios for different exercises. Use 1:1 for heavier lat pulldowns and seated rows, or 2:1 for lighter resistance and longer cable travel during chest flyes and lateral raises.
-
Plate-Loaded Design: Add weight plates to the built-in weight stacks to increase cable loading capacity up to 370 LB per side, giving you more resistance for heavier workouts.

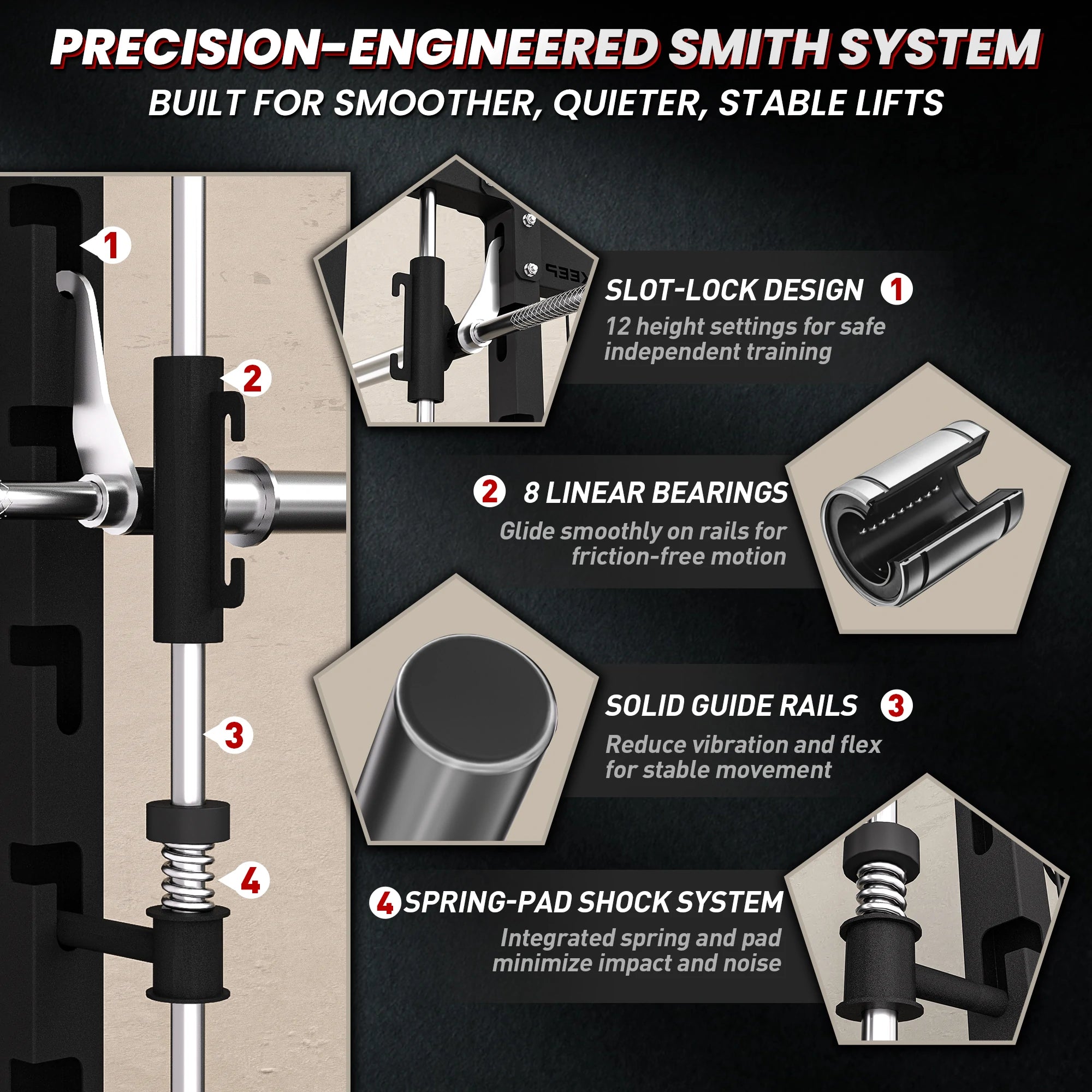

COUNTERBALANCED SMITH SYSTEM
- Start as Light as 5 LB: Connect the Smith bar to the weight stacks to counterbalance its weight, reducing the starting resistance to just 5 LB. Ideal for beginners, warm-ups, and practicing proper lifting form.
- Safer Solo Training: With 12 lockout positions, you can lock the Smith bar in place if you can't finish a lift, reducing the need for a spotter.
- Smooth, Uninterrupted Lifts: 8 linear bearings reduce friction, allowing the Smith bar to move smoothly during both lifting and lowering for a more consistent feel throughout each rep.
SPECIFICATION

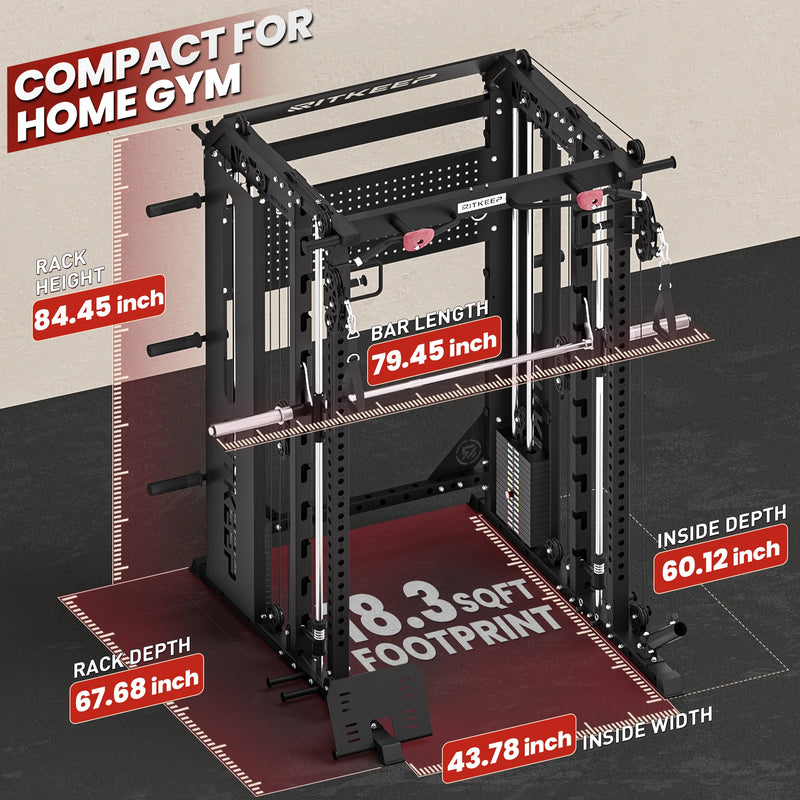

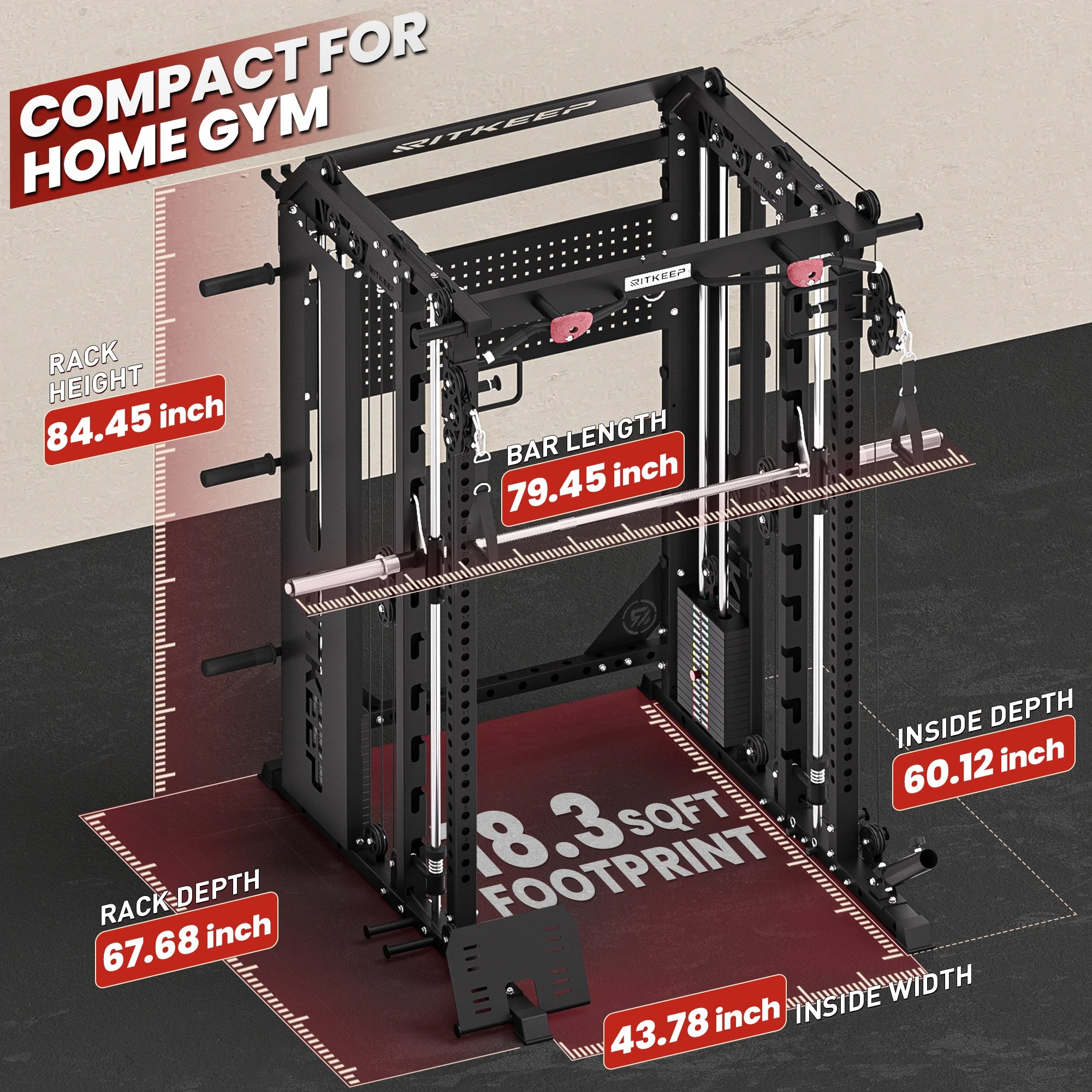

Dimensions & Footprint
| Rack Weight | 720 lb |
| Rack Height | 84.45 in |
| Rack Width (Including Smith Bar) | 79.5 in |
| Rack Depth (Including Attachments) | 67.99 in |
| Inside Width | 43.78 in |
| Inside Depth | 60.12 in |
| Smith Bar Weight | 35 lb |
| Smith Bar Length | 79.5 in |
| Smith Bar Sleeve Length | 10.87 in |

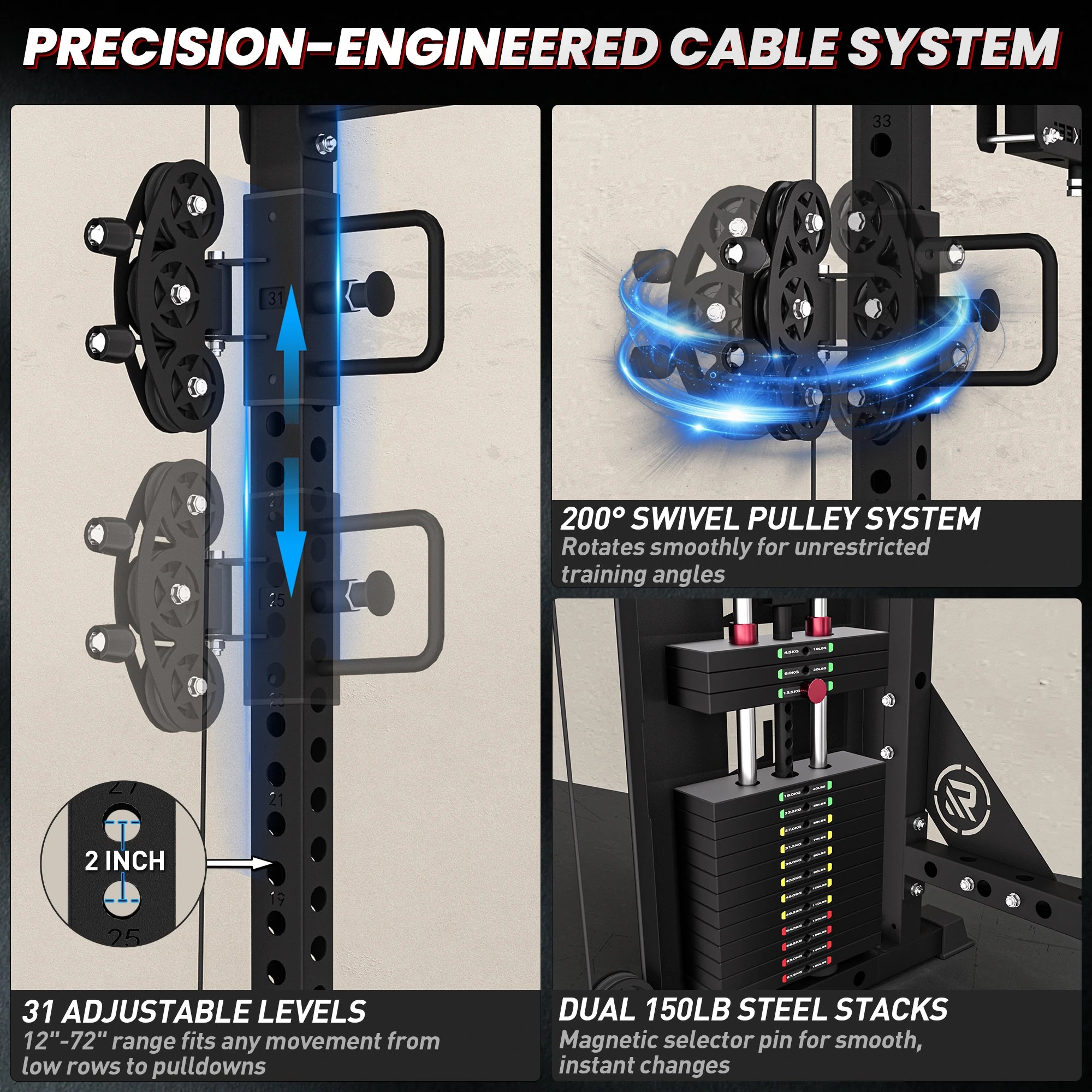

Cable Pulley
| Weight Stack | 2 x 150 lb Steel Stacks |
| Pulley Ratio | 1:1 & 2:1 |
| Pulleys | Nylon |
| Cable | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 33 Levels |

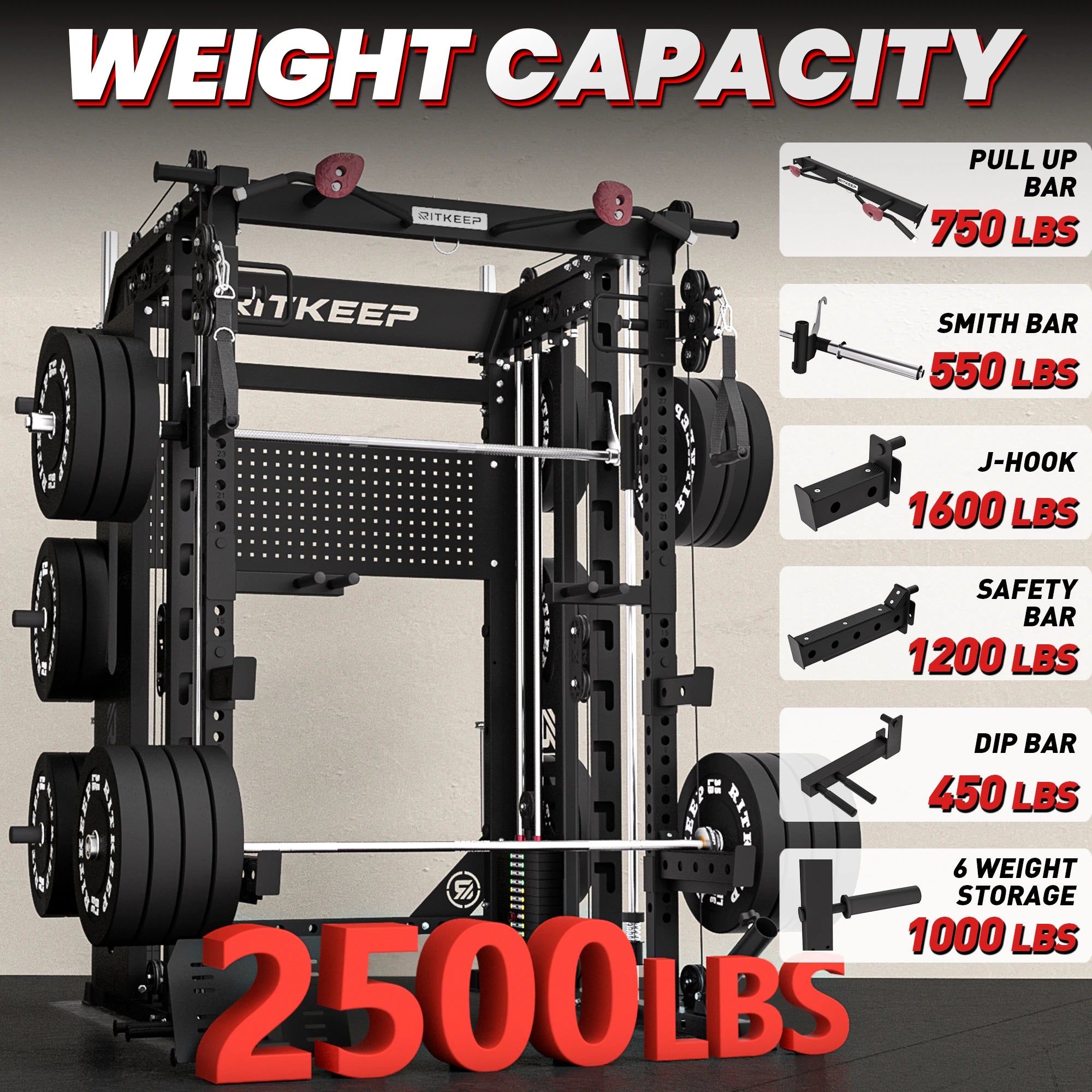

Max Load Capacity
| Machine | 2500 lb |
| Cable | 1500 lb |
| J-Hooks | 1600 lb |
| Safety Arms | 1200 lb |
| Pull-Up Bar | 750 lb |
| Dip Station | 450 lb |
| Lat Pulldown Bar | 300 lb |
| Straight Bar | 300 lb |
| Landmine & T-Bar | 600 lb |

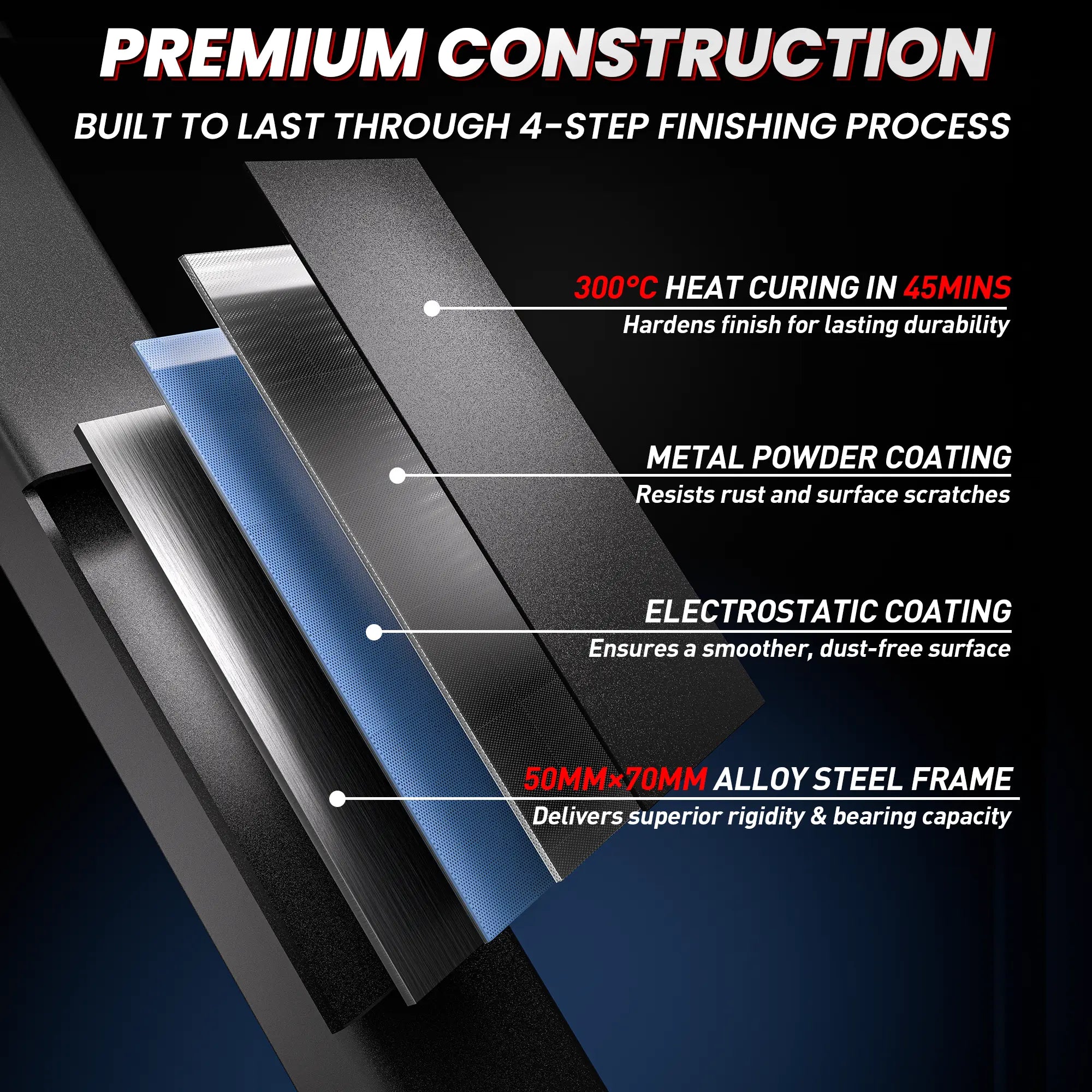

Frame
| Steel Type | 13-Gauge Steel |
| Square Tube | 50 mm x 70 mm |
| Metal Thickness | 2.5 mm |
| Coating | Powder Coated |
Nimitz N1 Installation
WARRANTY
Warranty Period
Ritkeep provides a comprehensive warranty coverage for a duration from the date of purchase. During this period, we guarantee that your product will be free from any defects in material, functionality, and workmanship. The warranty is exclusively applicable to the original purchaser of the product, as long as you remain the owner. It is important to remember that the warranty is non-transferable.
Construction
FOR ALL WARRANTIES * Warranty may be voided for any product which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis. Please note that our warranty does not apply to product or barbell service and maintenance. We recommend you properly service and maintain your product for life long product longevity.
** Warranty against bending does not cover any bar which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Negligent or faulty use includes abusive dropping of the bar (i.e., dropping the bar on a box, bench, spotter arms or pins in a power rack, excessive dropping with insufficient or damaged bumpers, excessive dropping with iron plates, excessive dropping on concrete or similar surfaces, and similar usage). Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis.
| Material | Warranty |
|---|---|
| Frames | 2 Year Warranty |
|
Pull-Down Bar, Dip Bar, Landmine, T-bar, Safety Arm, D-Shape Handle, J-Hooks |
1 Year Warranty |
| Wheels, Cables | 90 Day Warranty |
| Dumbbells | 2 Year Warranty |
| Weight Plate | 2 Year Warranty |
| Weight Bench | 1 Year Warranty |
To learn more about RITKEEP's Warranty Policy, please click here.

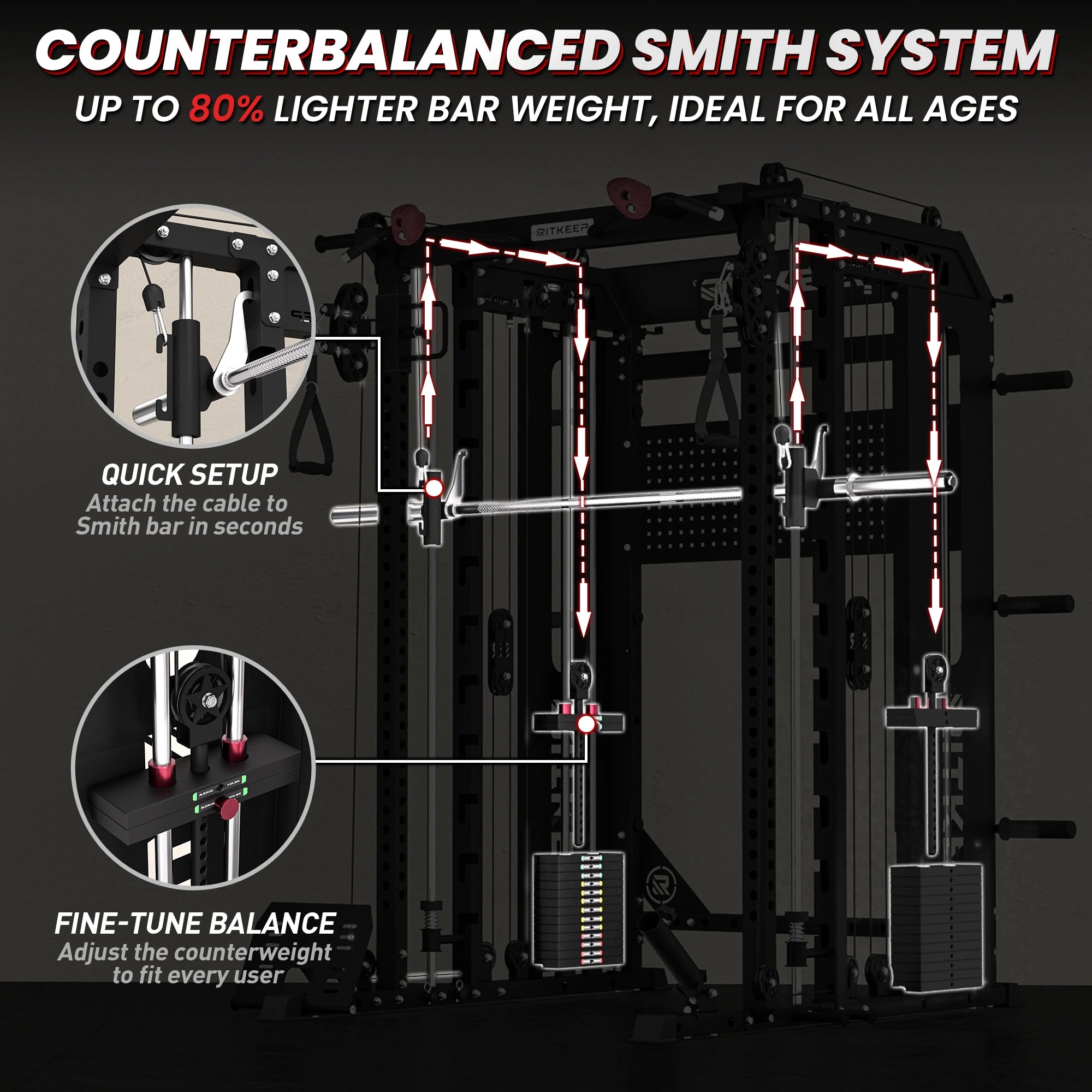

Counterbalanced Bar Starting from 5 LB
The counterbalanced Smith system uses cables to connect the Smith bar to weight stacks, reducing its starting weight from 35 LB to just 5 LB.
Start from 25 LB with 1 plate per side.
Start from 15 LB with 2 plates per side.
Start from 5 LB with 3 plates per side.

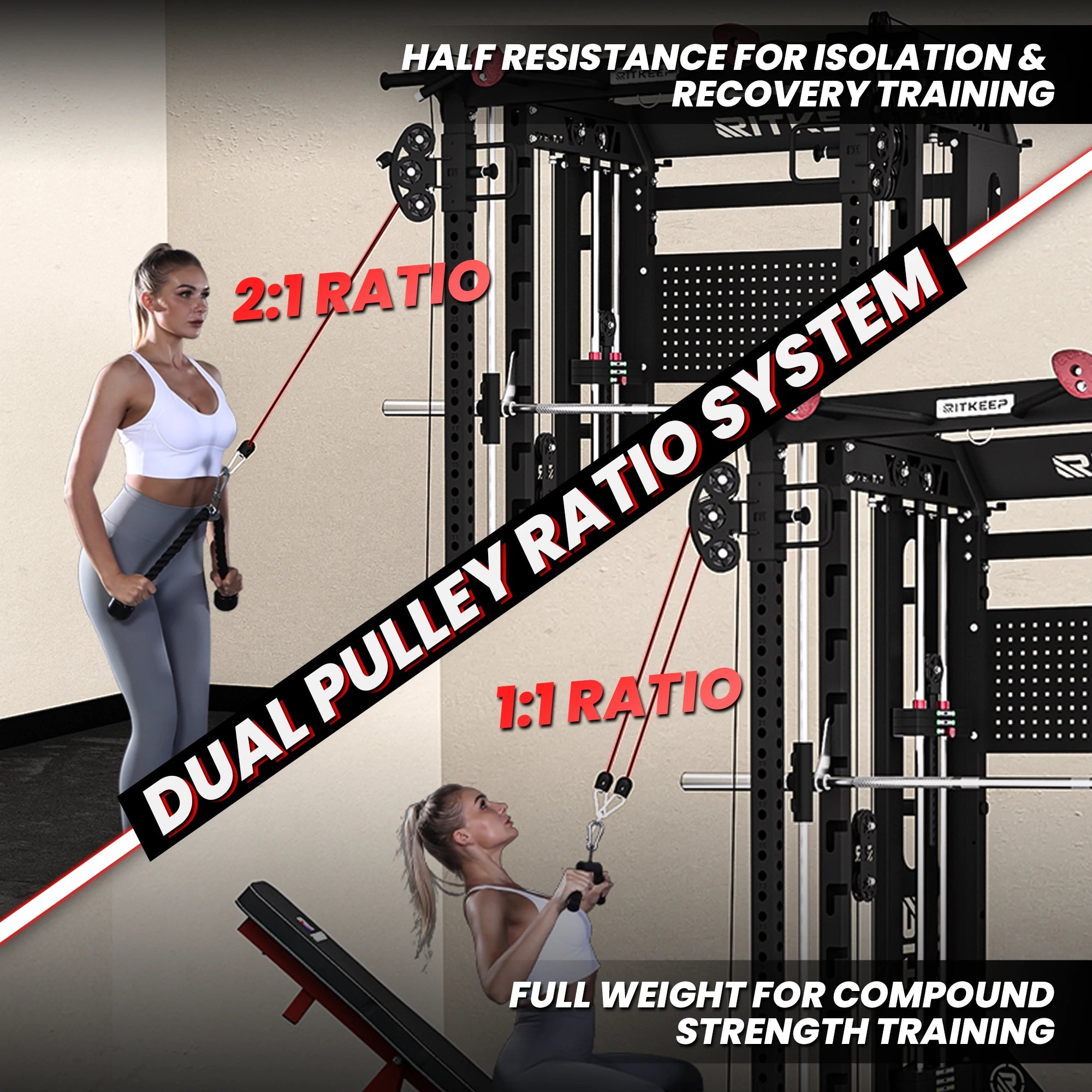

Dual Ratios Pulley System
Switch between 1:1 and 2:1 pulley ratios without any mechanical adjustments. Pull one cable for 2:1 resistance, ideal for chest flyes and lateral raises with lighter weight and longer cable travel. Pull both cables for 1:1 resistance, delivering heavier resistance for lat pulldowns and seated rows.

Integrated, Space-Saving Storage
Save floor space with 6 weight plate holders, 2 barbell holders, a rear pegboard, and dedicated attachment storage built into the rack.

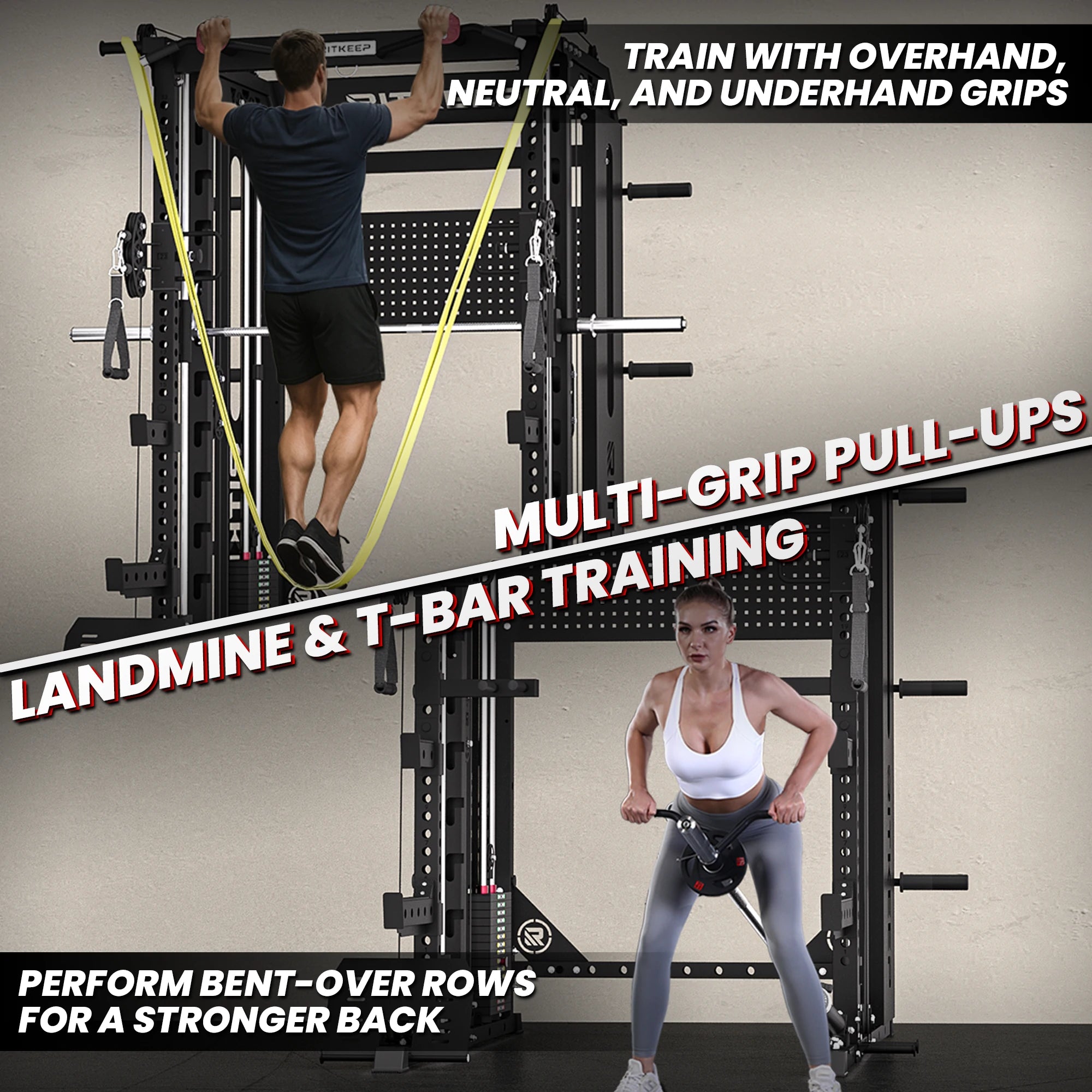

Multi-grip pull-up bar offers various hand positions for various exercises.

Store the Smith bar at the top of the frame to keep your workout area clear.

Use lower pegs to add squat resistance and upper pegs for assisted pull-ups.

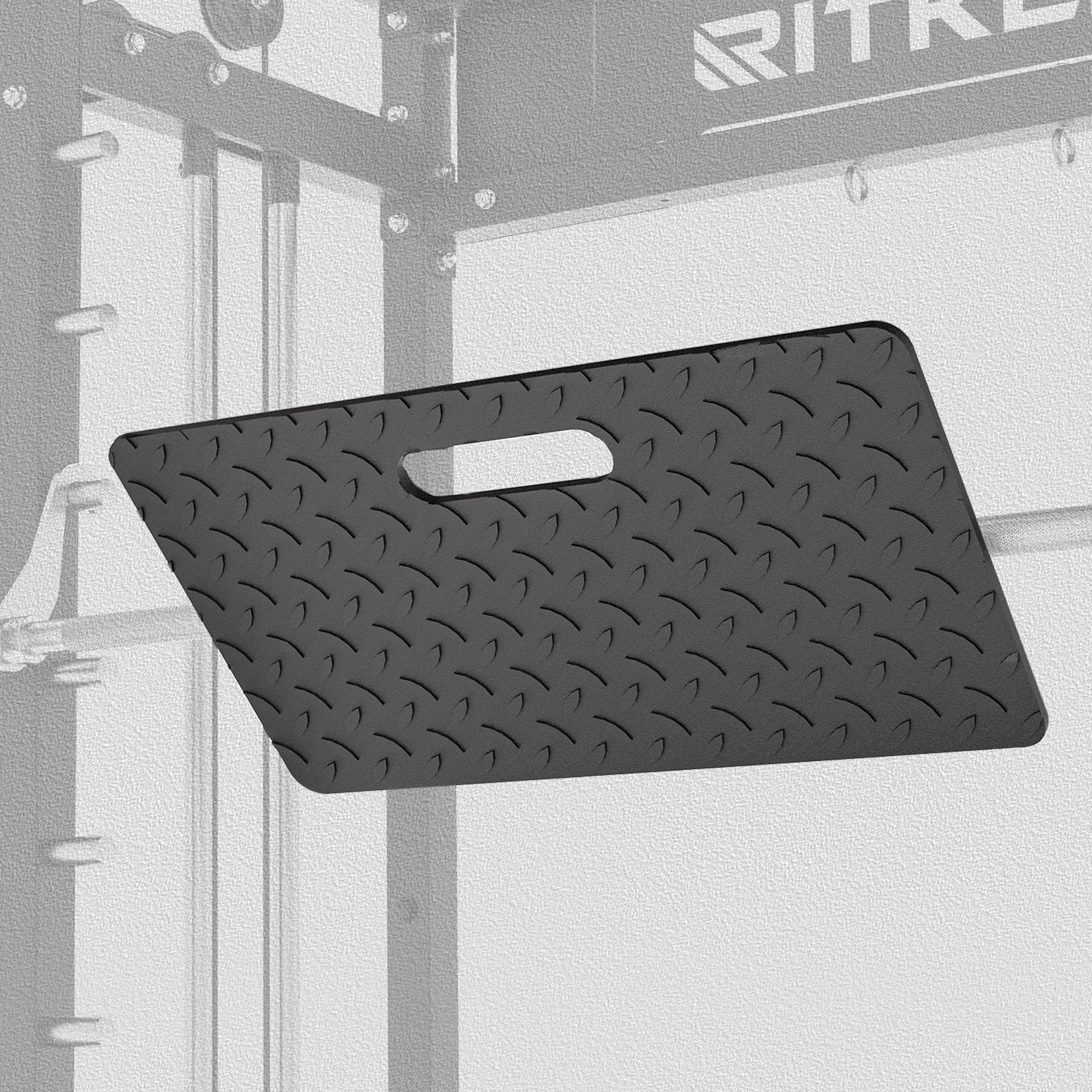

3 footplate angles and an 11.4″ × 15.7″ surface for stable, comfortable seated rows.

13-gauge steel uprights keep the rack stable during heavy squats and bench presses.
Frequently Asked Questions
What are the main highlights of the Nimitz N1?
The Nimitz N1 stands out with a counterbalanced Smith system that reduces the smith bar's starting weight to just 5 lbs. It also features a cable system with switchable 1:1 and 2:1 ratios, dual 150 lbs steel weight stacks, 11+ accessories, and integrated storage system to keep your workout space organized.
What are the main differences between the Classic and Pro versions?
The only difference is the Weight Extender. The Nimitz N1 Pro includes this attachment, allowing you to add weight plates for greater resistance during cable exercises.
How heavy is the built-in weight stack?
The Nimitz N1 features dual 150 lbs weight stacks, providing 300 lbs of total weight. Each side includes 15 weight plates at 10 lbs each for quick and easy resistance adjustments.
What exercises does the Nimitz N1 support?
The Nimitz N1 supports full-body strength training, including squats, deadlifts, bench presses, shoulder presses, hip thrusts, lat pulldowns, cable rows, curls, and more. It also supports resistance band training for even greater exercise variety.
What is the cable pulley ratio of the Nimitz N1?
The N1 features an interchangeable pulley system with both 1:1 and 2:1 cable ratios.
Pull one cable on either side to activate the 2:1 ratio for lighter resistance and longer cable travel, or pull both cables on the same side simultaneously to engage the 1:1 ratio for direct, heavier resistance.
What attachments are included for the Nimitz N1?

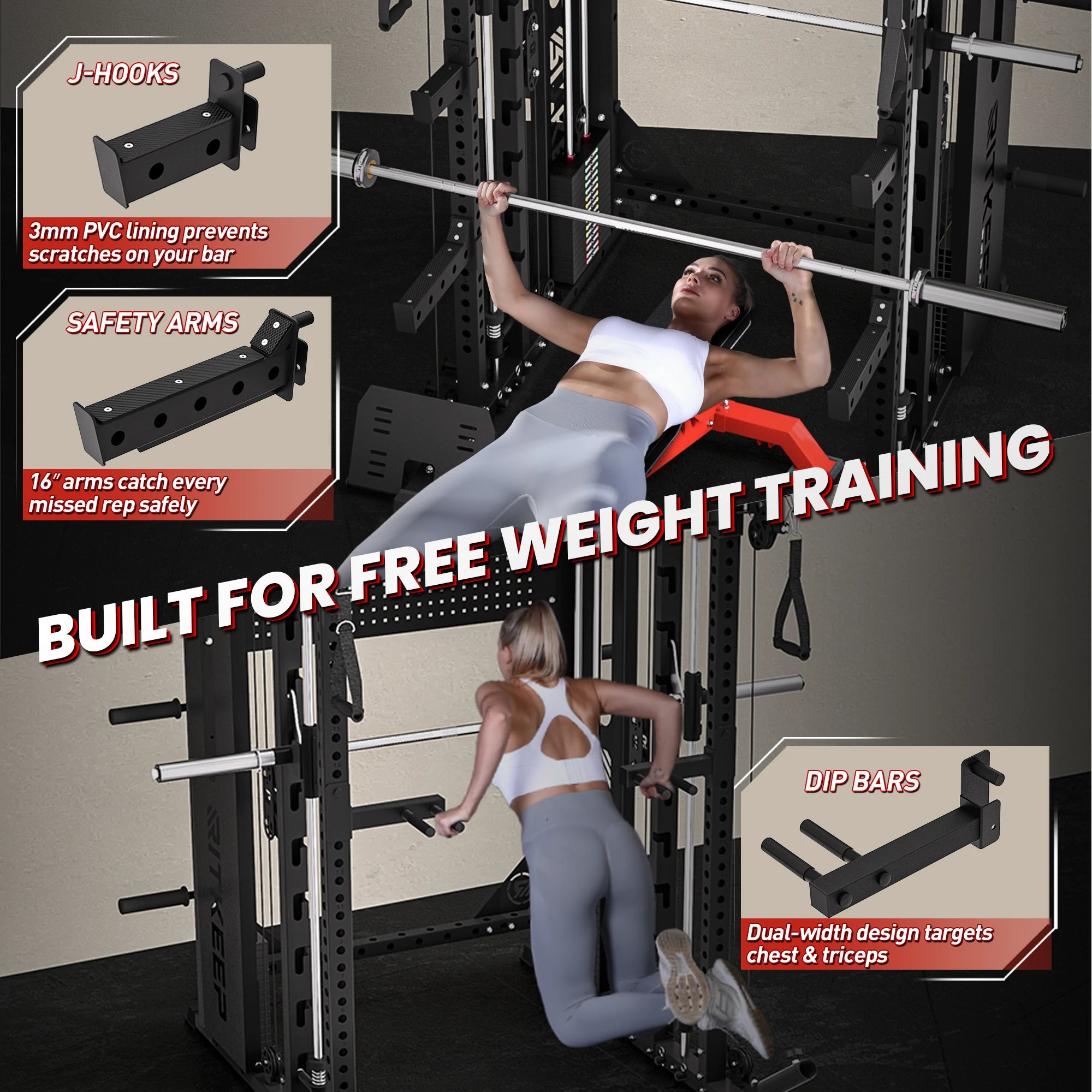

The Nimitz N1 comes with 11+ accessories, including J-Hooks, Safety Arms, Dip Bars, a Lat Bar, D-Handles, a Tricep Rope, Foot Plate, T-Bar, Short Bar, Landmine, and Resistance Band Pegs. You can also add optional accessories to expand your training options.
